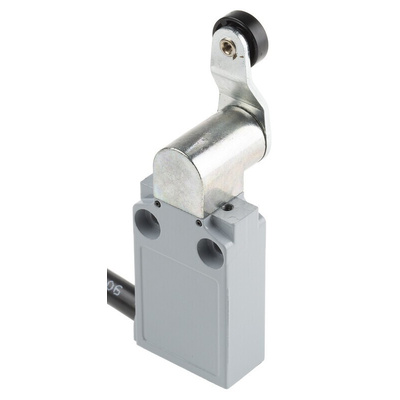

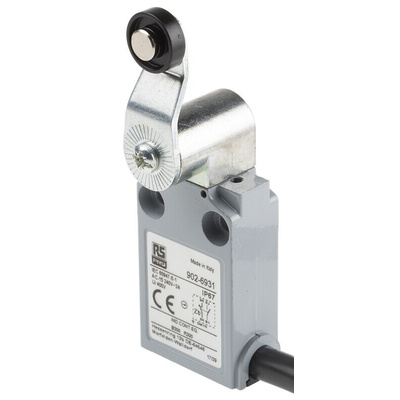

RS PRO Roller Lever Limit Switch, NO/NC, IP67, DPST, Die Cast Zinc Housing, 240V ac Max, 5A Max

RS PRO, Snap Action Limit Switch – Die Cast Zinc Alloy, Thermoplastic, NO/NC, Roller Lever, 240 V, IP67

You can use this RS PRO roller lever type of limit switch in any application where you need the roller lever actuator to actuate the switch, closing or opening an electrical circuit in your application. Its metal housing is made of die-cast zinc alloy to ensure the switch is strong, durable and resistant to corrosion.

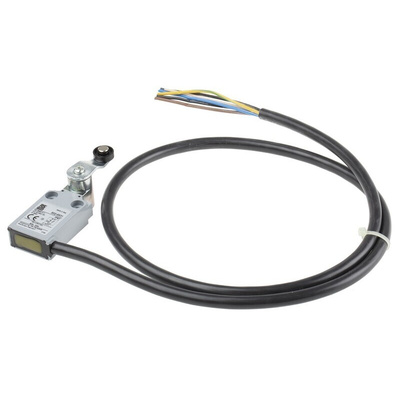

The product has an Ingress Protection (IP) rating of IP67, so you can be sure it's fully shielded from dust and will resist temporary immersion in water. The switch is pre-wired and features a PVC (polyvinyl chloride) cable to make assembly easier.
The product has snap-action NO (normally open) and NC (normally closed) contacts. It's handled and packed to meet US (ANSI/ESD S20.20:2014) and UK (BS EN 61340-5-1:2007) electrostatic discharge (ESD) requirements, so you can be sure the risk of a discharge is minimised.

Features and Benefits

• Roller lever actuator type
• Cable connection type
• Snap action contact type
• Dimensions of 31.5 (length) x 92 (width) x 16 mm (depth)
• Diecast zinc alloy, thermoplastic housing material
• IP67 rated
• Maximum voltage of 240 V AC
• Maximum current of 5 A
• Maximum voltage of 250 V DC
• Minimum operating temperature of -25°C
• Maximum operating temperature of +70°C
• Mechanical life (minimum) of 10000000 Operations
• Vertical mounting orientation
• NO/NC normal state configuration
• Operating force of 0.08 N
• DPST (double pole, single throwpole) configuration
• Meets CE, CSA, RU, UL standards
• Wire lead terminal type
