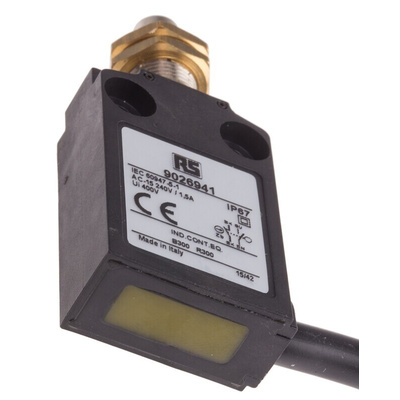

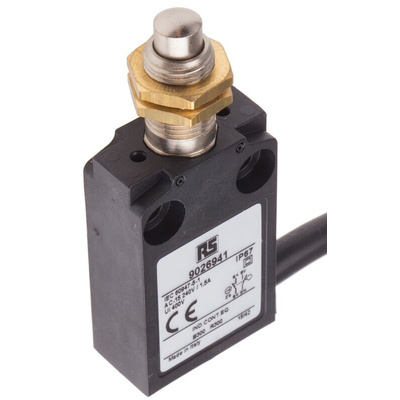

RS PRO Plunger Limit Switch, NO/NC, IP67, DPST, Thermoplastic Housing, 240V ac Max, 5A Max

RS PRO Snap Action Limit Switch, Thermoplastic, NO/NC, Plunger, 240 V, IP67

This RS PRO plunger-type limit switch features two connections – one NO (normally open) and one NC (normally closed). When an object pushes the plunger down, the switches change position, allowing you to detect or count the objects or monitor their limit of travel.


The limit switch has a double-insulated thermoplastic casing for increased safety and protection. It also has an IP67 rating, so it's dust-tight, touch-proof and resistant to temporary immersion in up to 1 m of water.


This product won't interfere with the operation of sensitive electronic equipment or components as it meets international electrostatic control standards. It's pre-wired with a polyvinyl chloride (PVC) cable for easy installation.

Features and Benefits

• Plunger actuator type


• Cable connection type


• Snap-action contact type


• Dimensions of 31.5 (length) x 74 (width) x 16 mm (depth)


• Thermoplastic housing material


• IP67 rated


• Maximum voltage of 240 V AC


• Maximum current of 5 A


• Maximum voltage of 250 V DC


• Operating temperature range of -25°C to +70°C


• Mechanical life (minimum) of 10000000 Operations


• Vertical mounting orientation


• NO/NC normal state configuration


• Operating force of 15 N


• DPST (double pole, single throw) configuration


• Meets CE, CSA, RU, UL standards


• Wire lead terminal type
