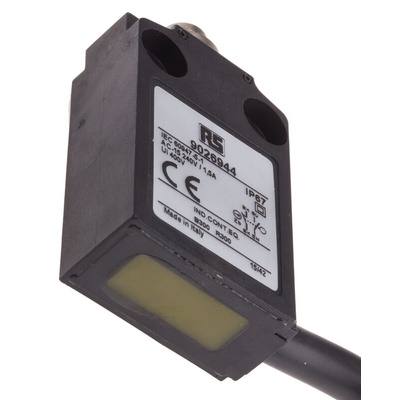

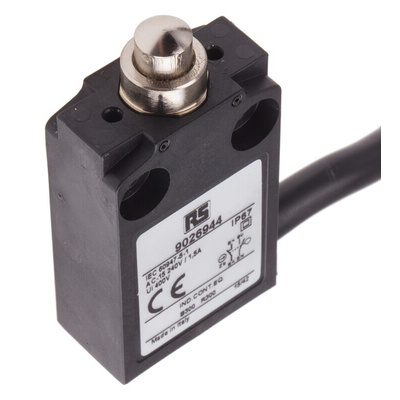

RS PRO Plunger Limit Switch, NO/NC, IP67, DPST, Thermoplastic Housing, 240V ac Max, 5A Max

RS PRO Snap Action Limit Switch, Thermoplastic, NO/NC, Plunger, 240 V, IP67

If you need to track the presence or position of an object, use this limit switch from RS PRO. It has a plunger actuator that, when pressed, changes the two switch positions from NO (normally open) to NC (normally closed) and vice versa. This allows you to count objects or detect when they pass through or reach a certain area.


This product's double-insulated thermoplastic housing offers good impact and chemical resistance for use in harsh environments. Its IP67 rating means it's completely dust-tight and protected from immersion in up to 1 m of water.


The switch is pre-wired with a PVC (polyvinyl chloride) cable, so you can install it quickly and easily. It meets US and UK electrostatic discharge (ESD) requirements, meaning it's safe to use around sensitive electronic equipment.

Features and Benefits

• Plunger actuator type


• Cable connection type


• Snap-action contact type


• Dimensions of 31.5 (length) x 60 (width) x 16 mm (depth)


• Thermoplastic housing material


• IP67 rated


• Maximum voltage of 240 V AC


• Maximum current of 5 A


• Maximum voltage of 250 V DC


• Operating temperature range of -25°C to +70°C


• Mechanical life (minimum) of 10000000 Operations


• Vertical mounting orientation


• NO/NC normal state configuration


• Operating force of 15 N


• DPST (double pole, single throw) configuration


• Meets CE, CSA, RU, UL standards


• Wire lead terminal type
