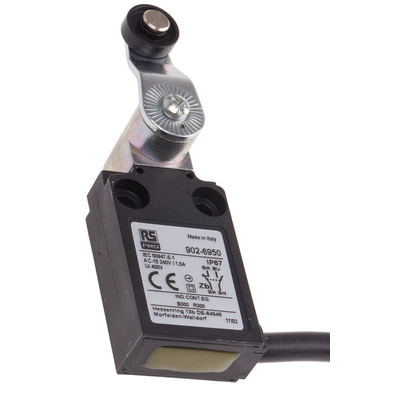

RS PRO Roller Lever Limit Switch, NO/NC, IP67, DPST, Thermoplastic Housing, 240V ac Max, 5A Max

RS PRO Snap Action Limit Switch, Thermoplastic, NO/NC, Roller Lever, 240 V, IP67

Use this RS PRO roller lever limit switch in any application where you need to count or detect passing objects without interfering with their travel. It has NO (normally open) and NC (normally closed) snap-action contacts that change position when the roller plunger is pressed down.


This limit switch has a double-insulated thermoplastic housing that's resistant to chemicals and impact, so it's suitable for use in harsh environments. It also has an IP67 rating, making the product completely dust-tight and sealed against up to 1 m of water for increased safety and durability.


The product comes with a polyvinyl chloride (PVC) cable that's pre-wired to make installation quick and easy. This type of limit switch is ideal for assembly lines and quality-control applications.

Features and Benefits

• Roller lever actuator type


• Cable connection type


• Snap-action contact type


• Dimensions of 31.5 (length) x 92 (width) x 16 mm (depth)


• Thermoplastic housing material


• IP67 rated


• Maximum voltage of 240 V AC


• Maximum current of 5 A


• Maximum voltage of 250 V DC


• Operating temperature range of -25°C to +70°C


• Mechanical life (minimum) of 10000000 Operations


• Vertical mounting orientation


• NO/NC normal state configuration


• Operating force of 0.08 N


• DPST (double pole, single throw) configuration


• Meets CE, CSA, RU, UL standards


• Wire lead terminal type
