RS PRO Adjustable Roller Lever Limit Switch, NO/NC, IP67, DPST, Thermoplastic Housing, 240V ac Max, 5A Max

RS PRO Snap Action Limit Switch, Thermoplastic, NO/NC, Adjustable Lever, 240 V, IP67

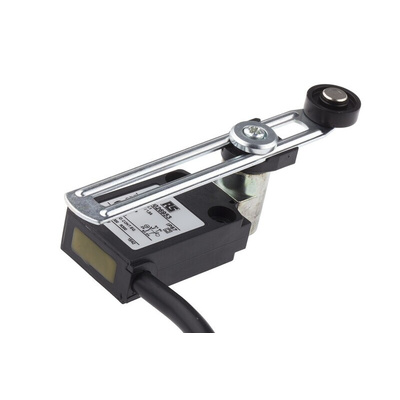

If you need a versatile way to count or detect passing objects, choose this adjustable lever limit switch from RS PRO. The lever actuator has a length range of 86 mm to 158 mm, giving you flexibility when installing the switch.


This is a durable component with a double-insulated thermoplastic housing that's impact and chemical-resistant. Its IP67 rating means it's sealed against all dust particles and protected against immersion in up to 1 m of water, so it's safe for use outdoors or in other tough environments.


The switch's two snap-action NO (normally open) and NC (normally closed) contacts change position when an object pushes the lever, activating one circuit and deactivating another. This makes it ideal for monitoring products on an assembly line.

Features and Benefits

• Adjustable lever actuator type

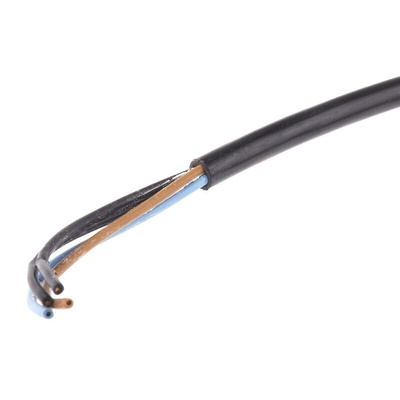

• Cable connection type


• Snap-action contact type


• Dimensions of 31.5 (length) x 158 (width) x 16 mm (depth)


• Thermoplastic housing material


• IP67 rated


• Maximum voltage of 240 V AC


• Maximum current of 5 A


• Maximum voltage of 250 V DC


• Operating temperature range of -25°C to +70°C


• Mechanical life (minimum) of 10000000 Operations


• Vertical mounting orientation


• NO/NC normal state configuration


• Operating force of 0.08 N


• DPST (double pole, single throw) configuration


• Meets CE, CSA, RU, UL standards


• Wire lead terminal type
