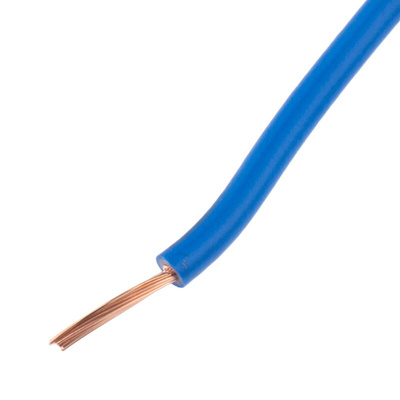

RS PRO Blue 1 mm² Hook Up Wire, 29/0.2 mm, 100m, PVC Insulation

RS PRO Blue Hookup and Equipment Wire, 1 mm², 100 m

This RS PRO 1 mm² equipment wire is a durable solution for wiring home appliances, circuit boards, and plugs and sockets. It's also suitable for feeding through ducts and pipes.


For excellent electrical conductivity, the cable features a single core with 29 copper strands. It has a polyvinyl chloride (PVC) sheath that insulates the wire and protects it against mechanical and thermal damage, as well as oil and chemical corrosion.


In the event of a fire, the cable jacket is made of a low smoke zero halogen (LSZH) material that does not release smoke or harmful gases. This makes the cable suitable for use in both home environments and crowded workspaces such as office buildings.

Features and Benefits

• Copper conductor material


• Conductor resistance of 19.5 Ω/km


• Stranded conductor type


• Core strand size of 0.2 mm


• Cross-sectional area of 1 mm²


• Flame retardant


• H05V-K harmonised code for low-voltage flexible PVC cables


• Polyvinyl chloride (PVC) insulation material


• Length of 100 m


• Operating temperate range of -5°C to +70°C


• Single core


• 29 strands


• Outer diameter of 2.4 to 2.8 mm


• Blue sheath colour


• Voltage rating of 500 V
