RS PRO Blue 1.5 mm² Hook Up Wire, 27/0.25 mm, 100m, PVC Insulation

RS PRO 1-Core 1.5 mm² H07V-K Power Cable, Blue PVC Sheath 100 m, 750 V

Use this single-core, multipurpose power cable from RS PRO for a wide range of low-voltage applications. It's typically used for circuit boards and small electronic equipment, as well as for wiring plugs to household appliances.


The cable is housed in an insulated, flexible sheath made from polyvinyl chloride (PVC), which makes it hardwearing and protects the user from the electrical current. It's also flame-retardant and chemical and abrasion-resistant, so you can use it in challenging industrial environments without compromising on safety. Its 27 copper strands offer excellent conductivity.

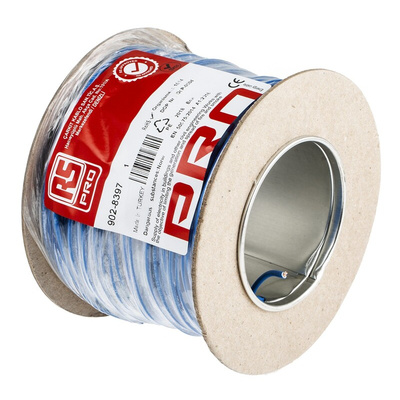

The power cable comes in a reel of 100 m, so you're unlikely to run short. It complies with the H07V-K harmonised code, which means you can safely use it in permanent installations in populated areas such as homes, offices and public spaces.

Features and Benefits

• Copper conductor material


• Conductor resistance of 13.3 Ω/km


• Stranded conductor type


• Core strand diameter of 0.25 mm


• Cross-sectional area of 1.5 mm²


• Flame-retardant


• H07V-K harmonised code


• Length of 100 m


• Single core


• 27 strands


• Outer diameter of 3.4 mm


• Blue sheath colour


• Polyvinyl chloride (PVC) sheath material


• Meets IEC 60332-1 fire safety standards for electric cables


• Voltage rating of 750 V
