RS PRO Brown 2.5 mm² Hook Up Wire, 45/0.25 mm, 100m, PVC Insulation

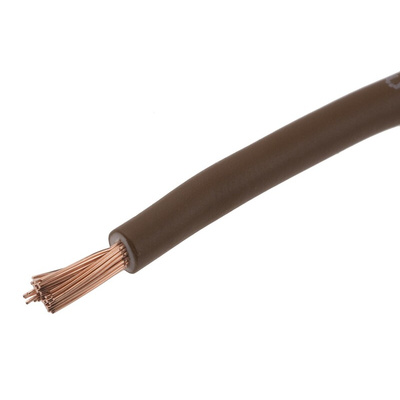

RS PRO 1-Core 2.5 mm² H07V-K Power Cable, Brown PVC Sheath 100 m, 750 V

This general-purpose mains power cable from RS PRO is an ideal choice for a wide range of low-voltage electrical applications. It comes in a standard reel length of 100 m and is a stranded copper cable that offers excellent conductivity.


The cable is encased in a flexible sheath that's made from PVC (polyvinyl chloride) for insulation against the electrical current. PVC is also a tough material that's resistant to chemicals, so it can handle challenging industrial settings. For additional safety and longevity, it's abrasion-resistant and flame-retardant.


This component has been manufactured to meet the H07V-K harmonised standard, which means it's safe to use in households, kitchens and offices. For additional peace of mind, it comes with a 3-year RS PRO warranty.

Features and Benefits

• Copper conductor material


• Conductor resistance of 7.98 Ω/km


• Core strand diameter of 0.25 mm


• Cross-sectional area of 2.5 mm²


• Flame-retardant


• H07V-K harmonised code


• Length of 100 m

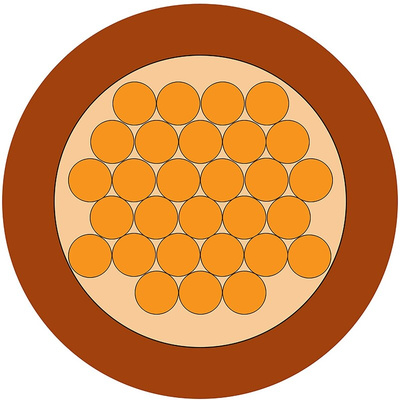

• Single core


• 45 strands


• Outer diameter of 4.1 mm


• Brown sheath colour


• Polyvinyl chloride (PVC) sheath material


• Meets IEC 60332-1 fire safety standards for electric cables


• Voltage rating of 750 V
