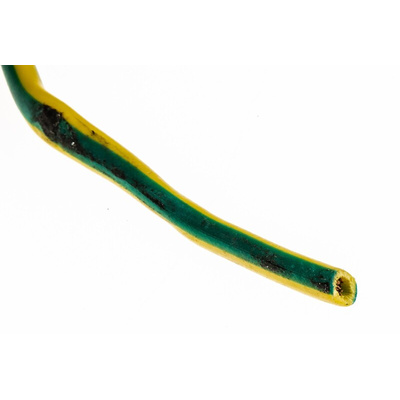

RS PRO 1 Core 2.5 mm² Power Cable, Green/Yellow Polyvinyl Chloride PVC Sheath 100m, 750 V, H07V-K

RS Pro H07V-K Cable

RS Pro PVC insulated cable is manufactured to meet H07V-K harmonised standard. Suitable for a variety of electrical installations, this stranded single core copper cable is flame retarded and meets IEC 60332-1 standards. Rated up to 750 V this single core cable comes in a standard reel of 100m.

Features and Benefits

• Flame retardant to IEC 60332-1
• Flexible Class 5 IEC 60228 conductor
• Rated voltage of up to and including 750 V
• Available in black, blue, grey, brown and green/yellow in a range of sizes
• High quality PVC insulation
• 100m reel
• Stranded copper core

RS PRO 1 Core 2.5 mm² Power Cable, Green/Yellow Polyvinyl Chloride PVC Sheath 100 m, 750 V, H07V-K

This insulated single-core power cable from the RS Pro range is used in an assortment of electrical applications. It's suitable for instrumentation, sensing and power management. It also conforms to the H07V-K harmonised standard, meaning it meets the safety conditions set out by CENELAC under Harmonisation Document 21.

The cable has a voltage rating of up to 750 V and a conductive resistance of 7.98 Ω/km. The hard-wearing green/yellow polyvinyl chloride (PVC) sheath is protective and flexible. It measures 100 metres in length, has an outer diameter of 4.1 mm and a cross-sectional area of 2.5 mm².

This product has been tested against international standards. These guarantee it's RoHS certified to contain minimal levels of hazardous substances and is suitable as a Class 5 flexible conductor (IEC 60228). The stranded copper cable is also flame retardant (IEC 60332-1).

Features and Benefits

• Single-core cable
• Green/Yellow sheath colour
• 45 x 0.25 mm core strands with a resistance of 7.98 Ω/km
• Reel length of 100 m
• Stranded cable with PVC sheath for flexibility
• Voltage rating of 750 V
• Copper conductor material
• PVC insulation
• Outer cable diameter of 4.1 mm
• Cross-sectional area of 2.5 mm²
• Flame retardant (IEC 60332-1)
• RoHS compliant (hazardous substances)
• H07V-K harmonised standard

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
