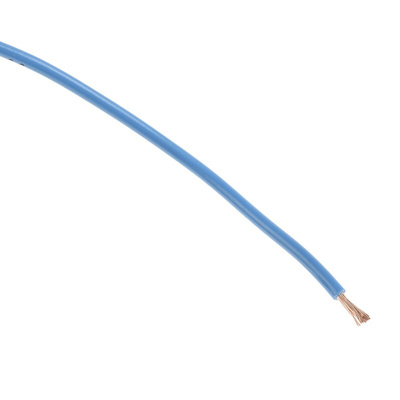

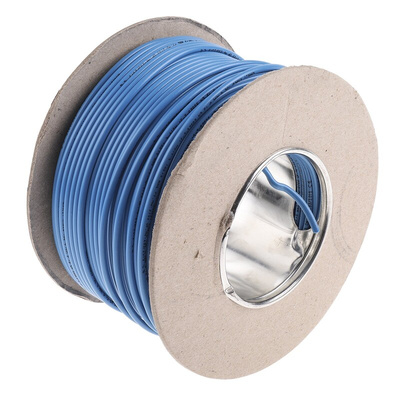

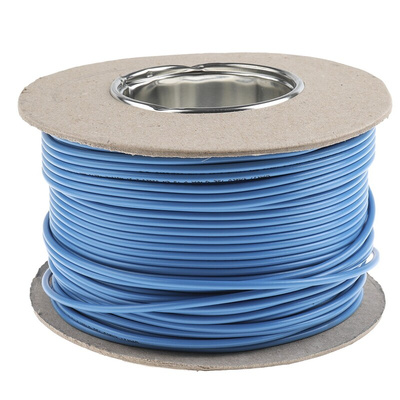

RS PRO Blue 2.5 mm² Hook Up Wire, 45/0.25 mm, 100m, PVC Insulation

RS PRO 1-Core 2.5 mm² H07V-K Power Cable, Blue PVC Sheath 100 m, 750 V

Use this power cable from RS PRO for a range of low-voltage applications. It has copper strands that are housed in a flexible, insulated sheath, making it safe for use in plugs, circuit boards, domestic appliances and other small electronic equipment.

The cable's PVC (polyvinyl chloride) sheath is flame-retardant and resistant to abrasion and chemical damage. This means you can count on it to last, even in harsh industrial settings.


This product is safe to permanently install in residential and commercial properties, as it meets the H07V-K harmonised code. Its 100 m length makes it easy to connect equipment in large spaces.

Features and Benefits

• Copper conductor material


• Conductor resistance of 7.98 Ω/km


• Stranded conductor type


• Core strand diameter of 0.25 mm


• Cross-sectional area of 2.5 mm²


• Flame-retardant


• H07V-K harmonised code


• Length of 100 m


• Single core


• 45 strands


• Outer diameter of 4.1 mm


• Blue sheath colour


• Polyvinyl chloride (PVC) sheath material


• Meets IEC 60332-1 fire safety standards for electric cables


• Voltage rating of 750 V
