RS PRO 1 Core 6 mm² Power Cable, Black Polyvinyl Chloride PVC Sheath 100m, 750 V, H07V-K

RS Pro H07V-K Cable

RS Pro PVC insulated cable is manufactured to meet H07V-K harmonised standard. Suitable for a variety of electrical installations, this stranded single core copper cable is flame retarded and meets IEC 60332-1 standards. Rated up to 750 V this single core cable comes in a standard reel of 100m.

Features and Benefits

• Flame retardant to IEC 60332-1
• Flexible Class 5 IEC 60228 conductor
• Rated voltage of up to and including 750 V
• Available in black, blue, grey, brown and green/yellow in a range of sizes
• High quality PVC insulation
• 100m reel
• Stranded copper core

RS PRO 1 Core 6 mm² Power Cable, Black Polyvinyl Chloride PVC Sheath 100 m, 750 V, H07V-K

Need to power equipment safely and effectively for a range of electrical installations? This power cable from the RS PRO range works for wiring applications like sensing and instrumentation. Its black PVC sheath gives it flexibility as well as durability.

The single-core stranded cable measures 100 m in length. You'll find it has a voltage rating of 750 V and a conductive resistance of 3.3 Ω/km. The outer diameter of the cable measures 5.3 mm and it has a cross-sectional area of 6 mm².

As it conforms to a number of international standards, you can be sure this cable is safe and reliable to use. Rigorous testing has ensured it's safe as a Class 5 flexible conductor (IEC 60228). What's more, it's flame retardant (IEC 60332-1) and contains minimal hazardous substances (RoHS).

Features and Benefits

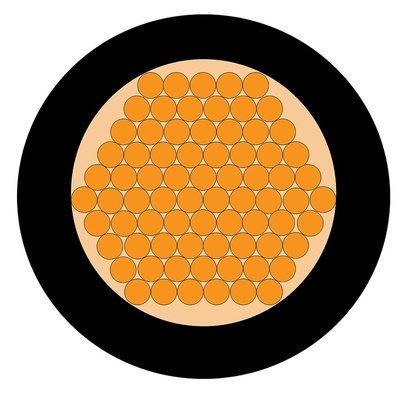

• Single-core, 75-strand power cable
• Internal wire size of 0.3 mm
• 1 x 6.0 mm core with a resistance of 3.3 Ω/km
• Reel length of 100 m
• Stranded cable with black PVC sheath for flexibility
• Voltage rating of 750 V
• Outer cable diameter of 5.3 mm
• Cross-sectional area of 6 mm²
• Copper conductor
• Flame retardant (IEC 60332-1)
• RoHS compliant (hazardous substances)
• H07V-K harmonised code

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
