RS PRO Green/Yellow 6 mm² Hook Up Wire, 75/0.3 mm, 100m, PVC Insulation

RS Pro H07V-K Cable

RS Pro PVC insulated cable is manufactured to meet H07V-K harmonised standard. Suitable for a variety of electrical installations, this stranded single core copper cable is flame retarded and meets IEC 60332-1 standards. Rated up to 750 V this single core cable comes in a standard reel of 100m.

Features and Benefits

• Flame retardant to IEC 60332-1
• Flexible Class 5 IEC 60228 conductor
• Rated voltage of up to and including 750 V
• Available in black, blue, grey, brown and green/yellow in a range of sizes
• High quality PVC insulation

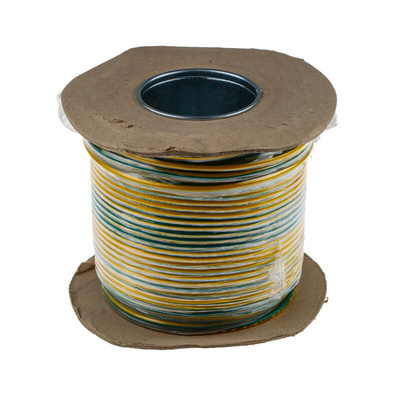

• 100m reel
• Stranded copper core

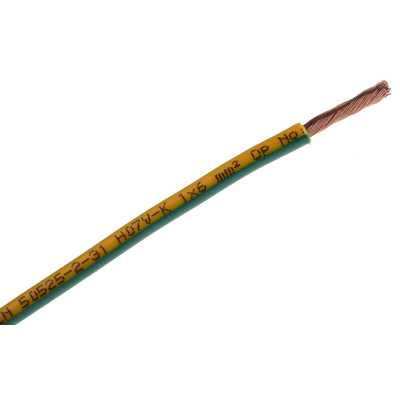

RS PRO 1 Core 6 mm² Power Cable, Green/Yellow Polyvinyl Chloride PVC Sheath 100 m, 750 V, H07V-K

This single-core power cable from the RS PRO range allows you to power equipment safely in a variety of fixed electrical installations. With a rated voltage of up to 750 V and a conductive resistance of 3.3 Ω/km, it's suitable for a range of applications including power management and sensing and instrumentation. The durable PVC sheath and stranded copper cable offer flexibility. The cable itself is available in lengths of 100 metres. It has a cross-section of 6 mm² and an outer diameter of 5.3 mm.

As the cable conforms to a range of international standards, you can rest assured it will deliver the performance and reliability you need. It's been stringently tested to ensure it's effective as a Class 5 flexible conductor (IEC 60228), as well as being flame retardant (IEC 60332-1) and RoHS certified to contain minimal levels of hazardous substances.

Features and Benefits

• Single-core cable
• 1 x 6.0 mm core with a resistance of 3.3 Ω/km
• 100-metre reel
• Stranded cable with PVC sheath for flexibility
• Voltage rating of 750 V
• Outer cable diameter of 5.3 mm
• Flame retardant (IEC 60332-1)
• RoHS compliant (hazardous substances)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
