4D Systems SK-70DT TFT LCD Colour Display / Touch Screen, 7in, 800 x 480pixels, Дисплей

Resistive Touch LCD Starter Kits with DIABLO16 processor, 4D Systems

4D Systems range of resistive touch Starter Kits with DIABLO16 processor are available in three sizes: 3.5 inch, 4.3 inch and 7 inch. The embedded DIABLO16 graphics controller is driven by Extensible Virtual Engine (EVE) and benefits from features such as full colour image, animation, icon and video display. You also have access to Workshop4 IDE for software development and coding using the 4DGL graphics language.

Features & Benefits:

3.5 inch LCD Starter Kit — 9028600
•Dimensions: 57 mm x 85.2 mm x 15.8 mm
•Viewing area: 49.7 mm x 77 mm
•480 x 320 pixel resolution
•16 GPIO pins
•Up to 65k colours
•4-Wire resistive touch panel
•6 banks of 32750 bytes of flash memory
•32 KB SRAM
•microSD memory card socket
•FAT16 DOS compatible file access
•PWM audio pin
•Suitable for a 4 V to 5.5 V power supply
•4 corner plates with 2.7 mm holes for mounting

4.3 inch LCD Starter Kit — 9028616
•Dimensions: 119.5 mm x 67 mm x 15.2 mm
•Viewing area: 95.04 mm x 53.85 mm
•480 x 272 pixel resolution
•16 GPIO pins
•Up to 65k colours
•4-Wire resistive touch panel
•6 banks of 32750 bytes of flash memory
•32 KB SRAM
•microSD memory card socket
•FAT16 DOS compatible file access
•PWM audio pin
•Suitable for a 4 V to 5.5 V power supply
•4 corner plates with 2.7 mm holes for mounting

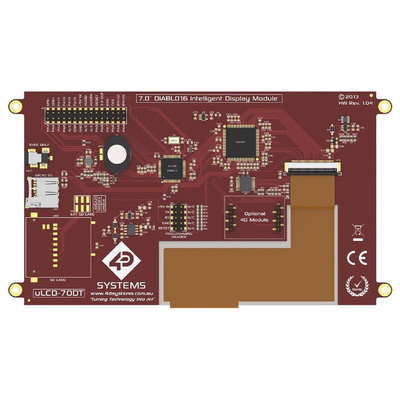

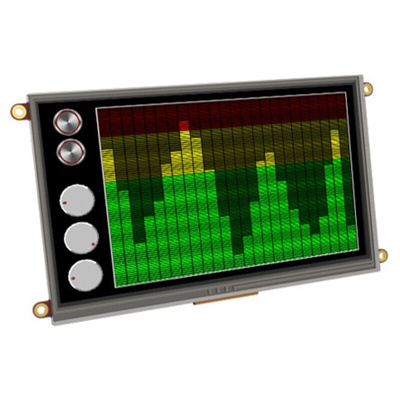

7 inch LCD Starter Kit — 9028625
•Dimensions: 179.9 mm x 100 mm x 15.5 mm
•Viewing area: 154.1 mm x 85.9 mm
•800 x 480 pixel resolution
•16 GPIO pins
•Up to 65k colours
•4-Wire resistive touch panel
•6 banks of 32750 bytes of flash memory
•32 KB SRAM
•microSD memory card socket
•FAT16 DOS compatible file access
•PWM audio pin
•Audio amplifier
•Suitable for a 4 V to 5.5 V power supply
•4 corner plates with 2.7 mm holes for mounting

Kit Contents:

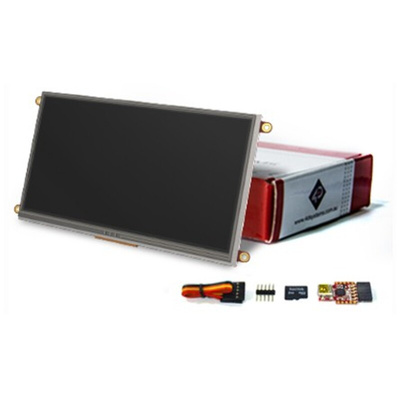

Each starter kit contains a resistive touch LCD module, a 2GB microSD card, a uUSB-PA5 programming adaptor, 150 mm 5 way female-to-female jumper cable, 5 way male-to-male adaptor and a quick start user guide.

Note

For new designs the 4D Systems gen4 range of LCD displays should be considered, including:
• gen4-uLCD-24DT (RS part 1257941)
• gen4-uLCD-28DT (RS part 1257942)
• gen4-uLCD-32DT (RS part 1257943)
• gen4-uLCD-43DT (RS part 1257947)

4D Systems LCD Touchscreens

Workshop 4 IDE Installation Guide

DIABLO16 Graphics Controller Data Sheet

DIABLO16 Internal Functions

uLCD-70D/DT Display Module Data Sheet

uUSB-PA5/11 microUSB Programming Adaptor Data Sheet

ViSi User Guide

ViSi Genie User Guide

Workshop 4 User Guide
