SK-96G2, 4D Systems 0.96in White Passive matrix OLED Display Starter Kit 96 x 64pixels Matrix Serial Interface, Стартовый комплект

Passive Matrix microOLED with GOLDELOX Starter Kits, 4D Systems

Here at RS we have three types of microOLED Starter Kit complete with embedded GOLDELOX graphics controller — one kit with a microOLED of 0.96 inches (9028628), one kit with a microOLED of 1.5 inches (9028583) and another with a microOLED of 1.7 inches (9028596). The GOLDELOX graphics controller contains plenty of features that enable you to display full colour images, animations, icons and videos and is driven by Extensible Virtual Engine (EVE).
You also have access to Workshop4 IDE for software development and coding using the 4DGL graphics language.

Features & Benefits:

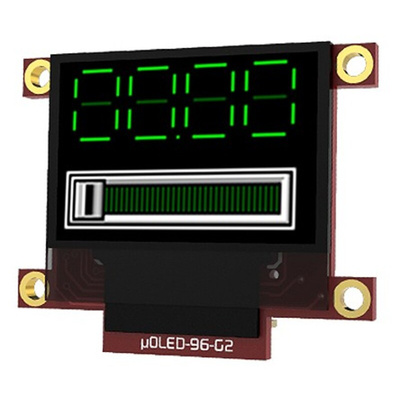

0.96 inch microOLED Starter Kit
•Digital I/O features such as A/D converter, sound generation, RTTTL sound engine, joystick, buttons and Dallas 1-Wire devices
•Dimensions: 26 mm x 21 mm x 13.2 mm
•Viewing area: 20.1 mm x 13.4 mm
•96 x 64 resolution
•Up to 65k colours
•10 KB of flash memory
•510 B of RAM
•1 asynchronous hardware serial port
•microSD memory card adaptor
•Supports Windows fonts and characters
•Suitable for a 4.0 V to 5.5 V power supply
•Back plate with 4 x 3mm holes for mounting

1.5 inch microOLED Starter Kit
•Digital I/O features such as A/D converter, sound generation, RTTTL sound engine, joystick, buttons and Dallas 1-Wire devices
•Dimensions: 45.5 mm x 33.5 mm x 6.1 mm
•Viewing area: 27 mm x 27 mm
•128 x 128 resolution
•Up to 65k colours
•10 KB of flash memory
•510 B of RAM
•1 asynchronous hardware serial port
•microSD memory card adaptor
•Supports Windows fonts and characters
•Suitable for a 4.0 V to 5.5 V power supply
•Back plate with 4 x 3mm holes for mounting

1.7 inch microOLED Starter Kit
•Digital I/O features such as A/D converter, sound generation, RTTTL sound engine, joystick, buttons and Dallas 1-Wire devices
•Dimensions: 52 mm x 32 mm x 6.1 mm
•Viewing area: 33.6 mm x 27 mm
•160 x 128 resolution
•Up to 65k colours
•10 KB of flash memory
•510 B of RAM
•1 asynchronous hardware serial port
•microSD memory card adaptor
•Supports Windows fonts and characters
•Suitable for a 4.0 V to 5.5 V power supply
•Back plate with 4 x 3mm holes for mounting

Kit Contents:
Each kit contains a display module, 2 GB microSD card, uUSB-PA5 programming adaptor, 150 mm 5 way female-to-female jumper cable, 5 way male-to-male adaptor and a quick start user guide.
