4D Systems uLCD-32PTU TFT LCD Colour Display / Touch Screen, 3.2in VGA, 240 x 320pixels, Дисплей

Resistive Touch LCD Modules with PICASO Processor, 4D Systems

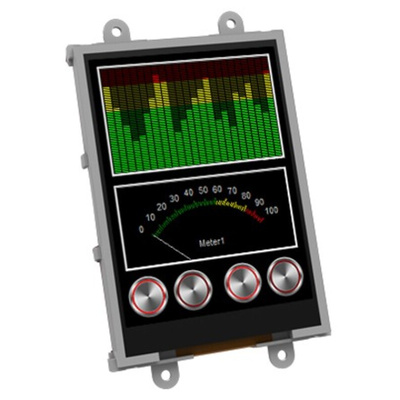

4D Systems range of resistive touch modules with PICASO processor are available in three sizes: 2.4 inch, 2.8 inch and 3.2 inch. The on-board PICASO graphics controller is driven by Extensible Virtual Engine (EVE) and benefits from built-in features such as full colour image, animation, icon and video display. You also have access to Workshop4 IDE for software development and coding using the 4DGL graphics language.

Features & Benefits:

2.4 inch LCD Module — 9028640
•Dimensions: 45 mm x 63 mm x 16 mm
•Viewing area: 36.72 mm x 48.96 mm
•240 x 320 pixel resolution
•13 GPIO pins
•Up to 65k colours
•4-Wire resistive touch panel
•14 KB flash memory
•14 KB SRAM
•2 asynchronous hardware serial ports
•I²C serial interface
•8 x 16-bit timers
•microSD memory card socket
•FAT16 DOS compatible file access
•Lithium polymer battery support
•PWM audio pin
•Audio amplifier
•30-pin header for I/O expansion and daughter board plug-in
•Suitable for a 4 V to 5.5 V power supply
•4 corner plates with 2.7 mm holes for mounting

2.8 inch LCD Module — 9028644
•Dimensions: 52.1 mm x 72 mm x 16 mm
•Viewing area: 43.2 mm x 57.6 mm
•240 x 320 pixel resolution
•13 GPIO pins
•Up to 65k colours
•4-Wire resistive touch panel
•14 KB flash memory
•14 KB SRAM
•2 asynchronous hardware serial ports
•I²C serial interface
•8 x 16-bit timers
•microSD memory card socket
•FAT16 DOS compatible file access
•Lithium polymer battery support
•PWM audio pin
•Audio amplifier
•30-pin header for I/O expansion and daughter board plug-in
•Suitable for a 4 V to 5.5 V power supply
•4 corner plates with 2.7 mm holes for mounting

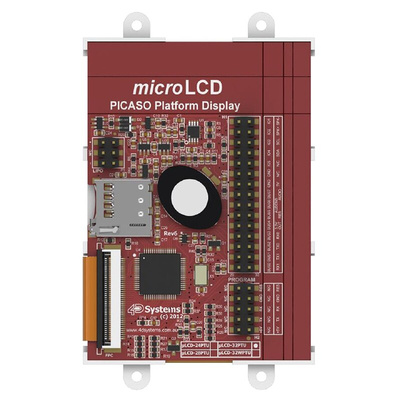

3.2 inch LCD Module — 9028653
•Dimensions: 56.3 mm x 80.5 mm x 15.9 mm
•Viewing area: 48.60 x 64.80 mm
•240 x 320 pixel resolution
•13 GPIO pins
•Up to 65k colours
•4-Wire resistive touch panel
•14 KB flash memory
•14 KB SRAM
•2 asynchronous hardware serial ports
•I²C serial interface
•8 x 16-bit timers
•microSD memory card socket
•FAT16 DOS compatible file access
•Lithium polymer battery support
•PWM audio pin
•Audio amplifier
•30-pin header for I/O expansion and daughter board plug-in
•Suitable for a 4 V to 5.5 V power supply
•4 corner plates with 2.7 mm holes for mounting

Note

For new designs the 4D Systems gen4 range of LCD displays should be considered, including:
• gen4-uLCD-24DT (RS part 1257941)
• gen4-uLCD-28DT (RS part 1257942)
• gen4-uLCD-32DT (RS part 1257943)
