Capacitive Touch LCD Module with DIABLO16 processor, 4D Systems

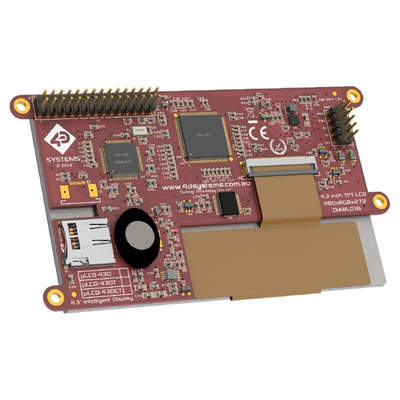

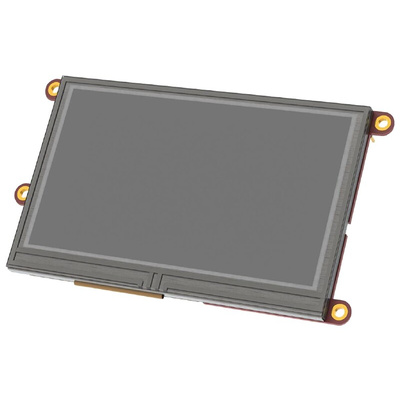

The uLCD-43DCT 4.3 inch Capacitive Touch LCD Module from 4D Systems features an on-board DIABLO16 graphics controller. The DIABLO16 is driven by Extensible Virtual Engine (EVE) and benefits from features such as full colour image, animation, icon and video display. You also have access to Workshop4 IDE for software development and coding using the 4DGL graphics language.
Features & Benefits of the 4.3 inch Capacitive Touch LCD Module
• Dimensions: 119.5 mm x 67 mm x 15.2 mm
• Viewing area: 95.04 mm x 53.85 mm
• 480 x 272 pixel resolution
• 16 GPIO pins
• Up to 65k colours
• 4-Wire resistive touch panel
• 6 banks of 32750 bytes of flash memory
• 32 KB SRAM
• microSD memory card socket
• FAT16 DOS compatible file access
• PWM audio pin
• Suitable for a 4 V to 5.5 V power supply
• 4 corner plates with 2.7 mm holes for mounting
Note
For new designs the 4D Systems gen4 range of LCD displays should be considered, including:
• gen4-uLCD-43DCT-CLB (RS part 1257948)
4D Systems LCD Touchscreens
