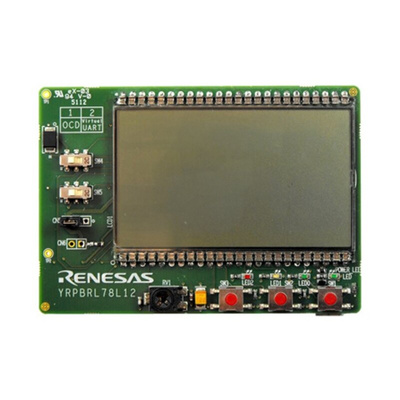

Renesas Electronics MCU Evaluation Board YRPBRL78L12

Evaluation Board for RL78/L12 Microcontrollers

The RPBRL78L12 Promotion Board by Renesas will be pre-programmed as it will work with the GUI which is provided on the DVD that is supplied. The board highlights the RL78/L12 series potential as well as the direct drive LCD functions. The RPBRL78L12 device incorporates the RL78/L12 CPU board with integrated LCD, On Chip Debugger (OCD) in addition to the Eclipse based e2studio platform.

Free GNU compiler and Example embedded code
Supported by IAR Systems
Power supply via USB interface
On-Board debug function
Renesas Flash Programmer (RFP)
Windows based Flash programming software allows the user to select
and download application programs to the YRPBRL78L12 board for evaluation
Applilet3 Device driver code generator - Software tool used to generate device driver code to initialise and use on-chip peripherals
Different input/output signals available

YRPBRL78L12 package includes:
YRPBRL78L12 promotion board
USB Cable: Type A/Mini B
Screwdriver to adjust the potentiometer voltage
DVD that lets you evaluate this product: software, tools, and documentation

RL78 Family Microcontrollers, Renesas Electronics

Quick User Guide
