RS PRO 18W Plug-In AC/DC Adapter 5V dc Output, 3A Output

RS PRO, 18 W Plug In Power Supply 5V DC, 3 A, Level VI Efficiency, 1 Output Power Supply, European, Interchangeable UK

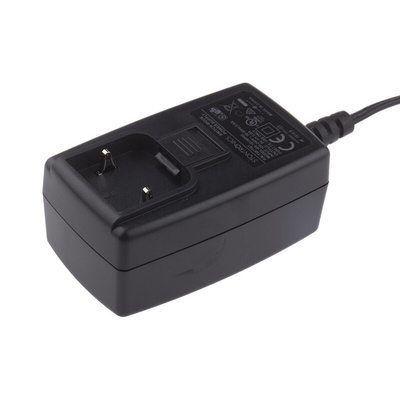

This 18 W plug-in power supply from the RS PRO range is a convenient adapter with interchangeable AC heads. It provides 5 V of direct current to devices such as laptops and external drives.

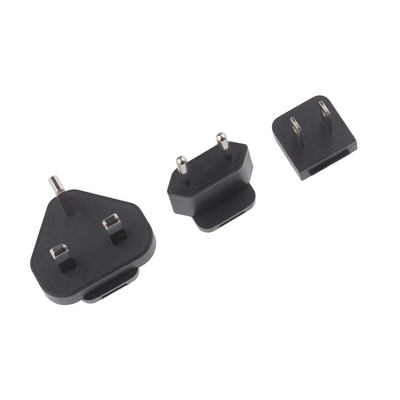

The unit has three AC plugs so you can change quickly between UK, US and European sockets while travelling. It also has a 1.5-metre cable for greater flexibility when choosing an outlet.
This model has been tested to meet the US-recognised Energy Efficiency Level IV. It also protects against overtemperature, overvoltage, overload and short circuit to ensure safe use.

Features and Benefits

• Input voltage of 110 V AC to 240 V AC


• Output current of 3 A


• Universal input connector


• Dimensions of 74 (length) x 43.5 (width) x 35.5 mm (depth)


• Input frequency range of 47 to 63 Hz


• Line regulation of ±1%


• Load regulation of ±5%


• Maximum input current of 600 mA


• Operating temperature range of 0°C to +40°C

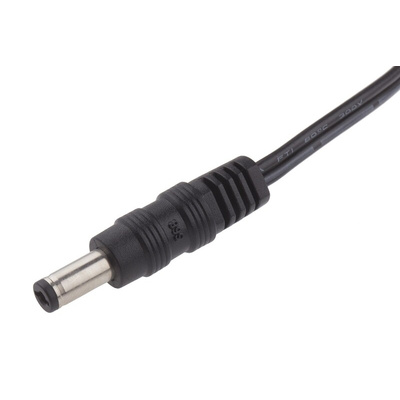

• Centre positive output connector dimensions of 2.1 x 5.5 x 12 mm


• Ripple and noise of 150 mV


• Weight of 200 g
