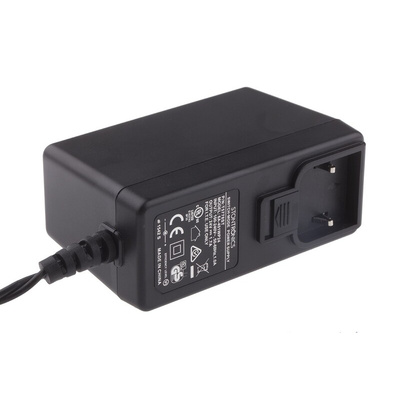

RS PRO 40W Plug-In AC/DC Adapter 24V dc Output, 1.7A Output

RS PRO 40 W Plug-In Power Supply 24 V DC, 1.7 A, Level VI Efficiency, 1 Output Power Supply, European, Interchangeable

Designed with the international traveller in mind, this portable plug-in power supply from RS PRO has three interchangeable heads and can be used in the United Kingdom, United States and the European Union. Whether you’re in London or the Big Apple, you can stay powered and in touch with this resourceful little plug.

The unit's robust heads are manufactured to stand up to regular changing, offering high reliability as well as excellent levels of power efficiency. The plug is sold with a 1.5 m cable and has an output voltage of 24 V DC.

The interchangeable wall plug is backed by a three-year warranty and carries worldwide safety approvals, making it a handy and dependable companion on your global travels. It can be used in industrial as well as residential applications and with a variety of DC-powered products, such as certain laptops, external hard drives and lighting.

Features and Benefits

• Universal plug-in power supply
• Power rating of 40 W
• Maximum input current of 1 A
• Output connector of 2.1 mm x 5.5 mm x 12 mm centre positive
• Energy efficiency level of VI
• Line regulation of ± 1%
• Features protection from short-circuit, overload and over-voltage
• Input frequency range of 47 Hz to 63 Hz
• Cable length of 1.5 m
• Input voltage of 100 V AC, 110 V AC, 115 V AC, 120 V AC, 127 V AC 220 V AC, 230 V AC, 240 V AC
• Output current of 1.7 A
• One output
• Output voltage of 24 V DC
• Power signal conversion type of AC-DC

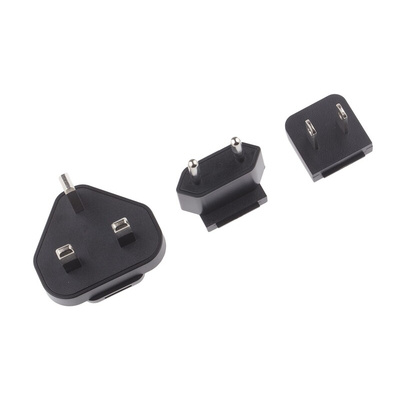

• Interchangeable European, UK, and US plugs
• Operating temperature range of 0°C to 40°C
• Dimensions of 90 mm x 38 mm x 59.4 mm
• Meets certification standards for CB (Certification Body), CCC (China), CE (European Economic Area), cUL/UL (Canada), cULus (United States), GS (Germany/EU) and RCM (Australia/New Zealand),
• DoE (Department of Engery) efficiency Level VI
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
