KSI240A100-L, i-Autoc KSI Series Solid State Relay, 100 A Load, Panel Mount, 280 V ac Load, 280 V ac Control, Реле

KSI (068) Series Solid State Relay

The KSI(068) series industrial single phase relay with IP20 touch-safe cover is the most widely used in industryapplication.The relay can be used for resistive, inductive and capacitive loads. The control input voltage is4-32VDC or 90-280VAC, output current rate 25A, 40A, 60A, 80A @ 48-660VAC.
Application for high-low temperature chamber, plastics machinery, incubation machine, oiling machine, HVAC, elevator, lighting, fountain controller.

IP20 touch safe cover
Zero switching or random-on
Output current 25A, 40A, 60A,80A
Load voltage 48 to 280 V ac, 18 to 440 V ac, 48 to 530 V ac or 48 to 660 V ac
SCR output
Dielectric strength 400 VACrms
Internal RS/MOV and TVS protection
Operating temperature range -30 ℃ to +80 ℃

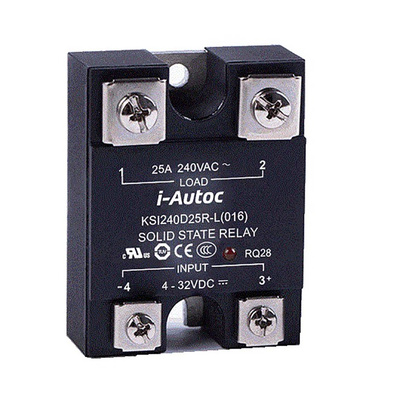

I-Autoc KSI (068) Series Single Phase Solid State Relay

Approvals

RoHS

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Datasheet
