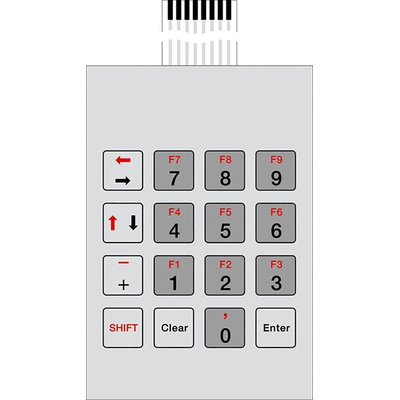

70055516, Bopla IP65 16 Key Conductive Silver Membrane Keypad, Кнопочная панель

9033194
Номер производителя: 70055516Производитель: Bopla
Цена за шт.
19974.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Bopla Membrane Keypads

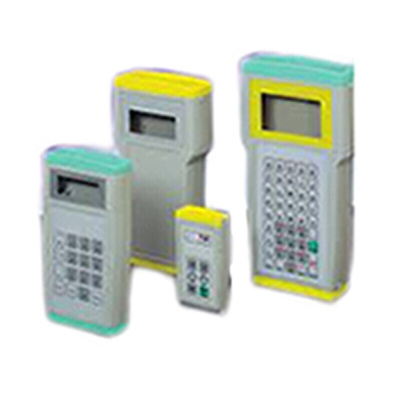

These keypads have been designed for use in a variety of applications with options for use in hand-held, desktop or wall mounted enclosures. When combined with the Bopla Arteb, BOS or Elegant range of enclosures they can be inserted quickly and easily making instillation very cost effective, even at small quantities.

These units are manufactured with copper laminated base membranes which have been galvanically silver plated. This copper laminated material is more flexible than units using conductive silver. It helps to almost eliminate the possibility of breaks to the membrane cable and makes silver migration practically impossible. This also means LED’s, photo diodes and other components can be soldered in contrast to other keypads where adhesive is used.

Switch pressure: 3 to 5 N
Ingress protection: up to IP67
Voltage range: 1 to 42 Vdc
Instillation height: from 0.6mm
Key area: from 7 x 7mm
Min average distance between keys: 11mm
Operating temperature range:
With embossing: 0 to +45°C
Without embossing: -20 to +70°C

Техническая спецификация
pdf70055516 Datasheet
Выход кнопочной панели:
Matrix
Диапазон рабочих температур:
-20 → +70 (Embossing) °C, -20 → +70 (Without Embossing) °C
Количество клавиш:
16
Корпус материал:
Conductive Silver
Корпус цвет:
Серый
Материал контактов:
Золото
Механический ресурс на ключ:
>1000000Операций
Номинальное напряжение:
42В пост. тока
Работа мембраны:
Да
Рабочая температура - максимальная:
+70 (Embossing) °C, +70 (Without Embossing) °C
Рабочая температура - минимальная:
-20 (Embossing) °C, -20 (Without Embossing) °C
Раскладка кнопочной панели:
Hexadecimal
Степень защиты IP:
IP65
Цвет привода:
Серый
