DMS-20PC-3-RS-C, Murata Power Solutions DMS-20PC Series Digital Panel Voltmeter DC, LED Display 3.5-Digits ±3 %, 33.93 x 21.29 mm, Вольтметр

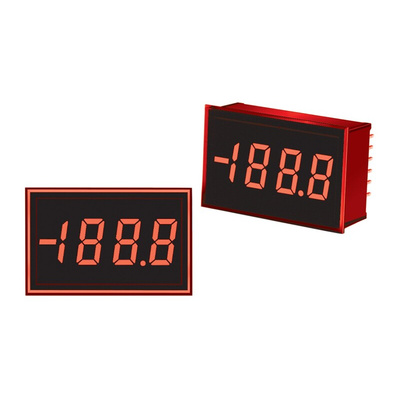

DMS-20PC - Subminiature Digital Panel Voltmeters

The digital panel voltmeter DMS-20PC series with a 3.5 digit LED Display combine a precision A/D converter; a factory-trimmed, highly stable, voltage reference; and a large 9.4 mm, easy-to-read LED display in a single package that is only slightly larger than the display itself.
These low-cost meters are fully self-contained and fully functional. Their subminiature epoxy-encapsulated cases incorporate built-in colour filters and bezels; are moisture and vibration proof; and function well in the harshest environments.

Digital Voltmeters with 3.5 digit LED display
Large 9.4 mm display in Blue or Red
3 differential input voltage ranges
Factory calibrated,±1 count accuracy
User-selectable decimal point placement
Display enable function for "power-down" mode
Single +5 V power supply
Epoxy-encapsulated in a12-pin DIP package
Subminiature size with 35x22x12 mm
Panel or pc-board mountable

Murata Power Solutions Series

DMS-20PC Series Data Sheet
