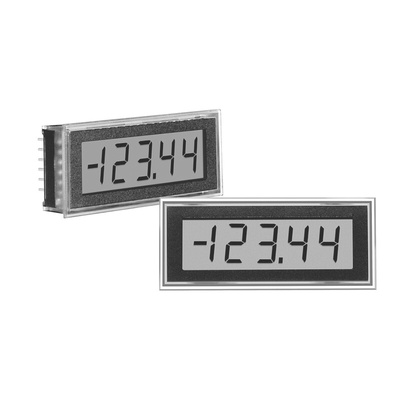

DMS-40LCD-0/1-5B-C, Murata Power Solutions DMS-40LCD Series Digital Voltmeter DC, LCD Display 4.5-Digits ±3 %, Вольтметр

DMS-40LCD - Digital Panel Voltmeters

The digital voltmeter DMS-40LCD series represent the ultimate combination of price, precision and convenience.
Epoxy encapsulated in a subminiature 12-pin DIP package, these completely self-contained, fully operational meters offer a combination of ruggedness, long-term reliability and component-like ease-of-use simply not available in any other meters.

Digital Voltmeters with 4.5 digit LCD display
Large 10.2 mm, enhanced-contrast LCD display
2 input voltage ranges, ±200 mV / ±2 V
Scientific-grade accuracy, ±2 counts
Single +5 V supply
User-selectable decimal point place
Low-battery "BAT" annunciator
Epoxy-encapsulated, in a 12-pin DIP package
Miniature size with 55x23x11 mm

Murata Power Solutions Series

DMS-40LCD Series Data Sheet
