DMS-20PC-2-LM-C, Murata Power Solutions DMS-20PC Series Digital Panel Voltmeter AC, LED Display 3-Digits ±2 V, 33.93 x 21.29 mm, Вольтметр

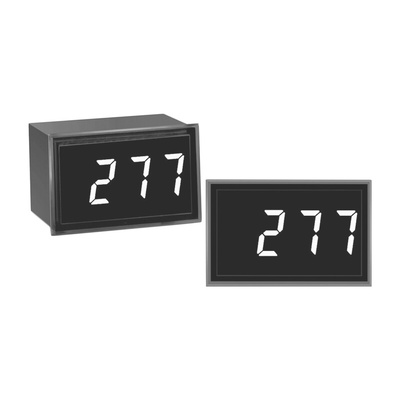

DMS-20PC-2-LM Self-powered LED High-Voltage Monitor

The DMS-20PC-2-LM is a component-size, self-contained, low-cost AC voltmeter specifically designed for high-voltage or high-frequency operation.
The digital Voltmeter's unique power-supply circuitry allows a single model to operate from either 240 to 310V ac with 50/60Hz inputs or from 85 to 140V ac with 400Hz inputs. The meter requires no external components or auxiliary power for full operation.

Large (9.4mm), easy-to-read, bright red LED display
Self-powered, two-terminal operation
Dual operating ranges: 240-310V ac at 50/60Hz or 85-140V ac at 400Hz
Half-wave averaging, rms calibrated
Rugged, epoxy-encapsulated construction
Built-in bezel for panel mounting
Reliable screw terminals for easy installation
Small 1.38" x 0.88" x 1.0" package

Applications:

Emergency power equipment
277V ac fluorescent lighting systems
400Hz aircraft installations
Other applications that require accurate, high-voltage or high-frequency AC line monitoring

Approvals

UL/cUL/IEC/61010-1

Murata Power Solutions Series

DMS-20PC-2-LM Data Sheet
