T9090U-UNL1-A1GC1H-410 TSLC, 12 UV LED, 420nm 6500mW 140 °, 2-Pin Surface Mount package, Ультрафиолетовый светодиод

TSLC 9090 UV LEDs

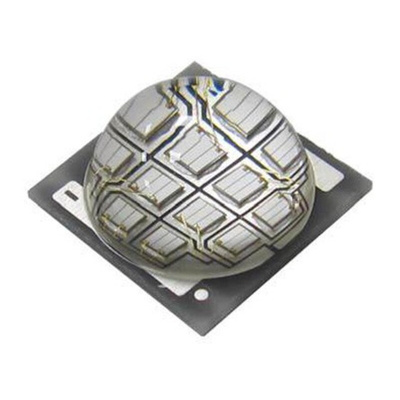

The 9090 family from TSLC are a family of high-power multi-chip UV LEDs. They all share the same 9090 footprint containing twelve LED chips. This enables the 5050 UV LEDs to offer high radiometric power density from a compact package.
The 9090 UV LEDs offer high reliability and high quality. Available in a variety of different UV wavelengths (listed below) makes them ideal for a range of applications including; printer, inkjet, glue curing and other general UV applications.

Features of the 9090 UV LEDs:
9090 footprint - 9 x 9 mm
SMD package
Domed lens
12 chips
High reliability
140° beam angle

TSLC UV colour categories:
U40 – 380 to 390 nm
U50 – 390 to 400 nm
U60 – 400 to 410 nm
U70 – 410 to 420 nm

Ultraviolet (UV) LEDs, TSLC

Datasheet
