RS PRO Through Beam Photoelectric Sensor, Fork Sensor, 30 mm Detection Range, Фотоэлектрический датчик

U-shape Photoelectric Sensors

Through beam u-shape photoelectric sensors with LED indicator.

Accurate positioning
Quick response
Reverse polarity and surge protection
Housing material: PBT
Protection degree: IP65 (IEC)

RS PRO Photoelectric Sensor Through Beam (Fork) 30 mm Detection Range PNP

A highly accurate tool for detecting small objects at close range, this through-beam photoelectric sensor from RS PRO can detect objects within a range of 30 mm. Through-beam sensors are ideally suited for use in foggy, dusty or dirty environments, as the light from the transmitter is aimed directly at the receiver.

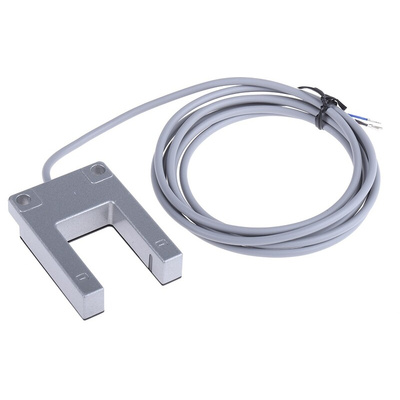

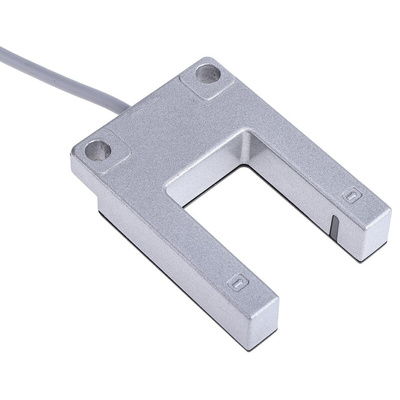

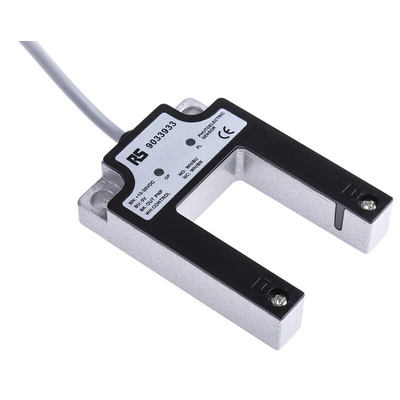

The fork-style sensor comes in a lightweight but sturdy aluminium alloy housing. The panel-mount device comes prewired, with termination to a 2-metre, 4-wire cable. With a response time of 1 ms, it's a precision tool that's suitable for use in automated processes.

This product comes with surge protection and reverse polarity. It conforms to international (IEC) and European (CE) standards as a safe and effective photoelectric sensor and is IP67 rated for protection against dust and condensation.

This kind of sensor is typically used in industrial manufacturing applications such as fabrication facilities.

Features and Benefits

• Photoelectric sensor
• Fork-style through-beam sensor

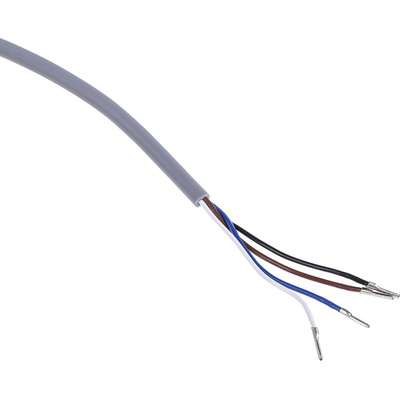

• Terminated in 2 m, 4-wire cable
• Prewired terminal
• Panel mounting
• Detection range of 30 mm
• Response time of 1 ms
• Housing material of aluminium alloy
• Minimum operating temperature of -15˚C
• Maximum operating temperature of +55˚C
• Maximum DC voltage of 30 V
• Maximum current of 15 mA
• NPN/PNP output
• Infrared light source
• LED technology
• CE-certified and UL-listed
• Meets CE and IEC safety standards
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant
