RS PRO Through Beam Photoelectric Sensor, Fork Sensor, 30 mm Detection Range, Фотоэлектрический датчик

RS PRO Through Beam (Fork) Photoelectric Sensor with Fork Sensor, 30 mm Detection Range

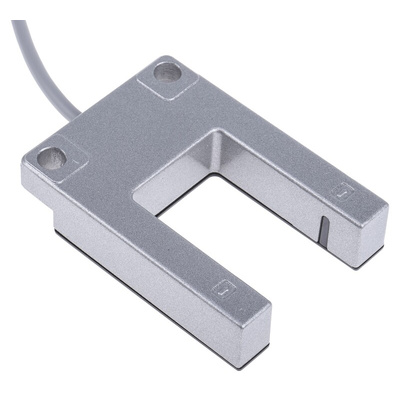

Looking for a through-beam sensor for detecting objects? Choose this fork-style photoelectric sensor from RS PRO. It's easy to use as it features U-shaped photoelectric sensors with LED (light-emitting diode) indicators.


The sensor's housing is made of an aluminium alloy material, so it's strong and resistant to corrosion. It's also well-suited to outdoor installations as it has an Ingress Protection (IP) rating of IP67. This means it's dust-tight and can withstand submersion in one metre of water for up to 30 minutes. For added safety in the event of faulty wiring, the device will cut power to the transmitter's sensitive electronic circuits for protection against reverse polarity.

Features and Benefits

• Detection range of 30 mm


• Through-beam (fork) detection type

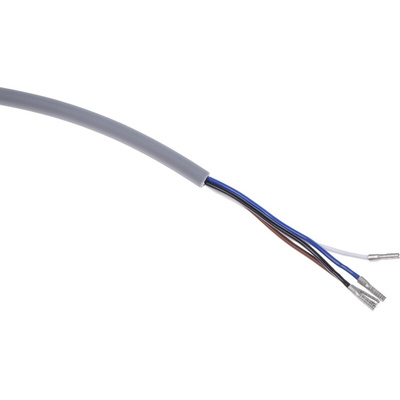

• 4-wire electrical connection

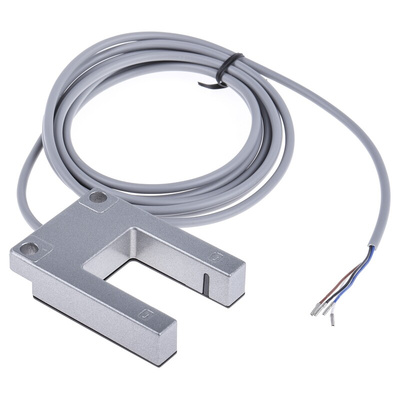

• Cable length of 2 m


• Aluminium alloy housing material


• Ingress Protection (IP) rating of IP67


• Infrared light source


• Maximum current of 15 mA


• Maximum DC voltage of 30 V


• Maximum operating temperature of +55°C


• Minimum operating temperature of -15°C


• Panel mounting type


• LED (light-emitting diode) optical technology


• PNP (Positive Negative Positive) NO (Normally Open) output type


• Response time of less than 1 ms


• Fork sensor style


• Meets CE (Conformité Européenne) and IEC (International Electrotechnical Commission) standards


• Pre-wired terminal type
