RS PRO Through Beam Photoelectric Sensor, Fork Sensor, 30 mm Detection Range, Фотоэлектрический датчик

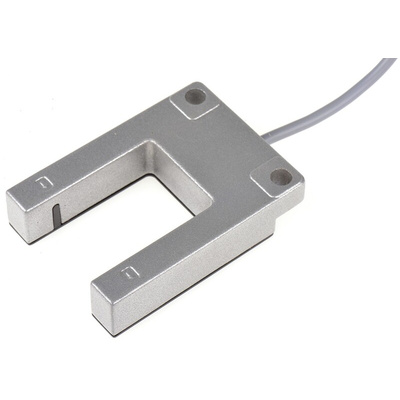

RS PRO Through Beam (Fork) Photoelectric Sensor with Fork Sensor, 30 mm Detection Range

When you need to detect a range of objects regardless of their colour or angular motion, choose this through-beam photoelectric fork-style sensor from RS PRO. It features U-shaped photoelectric sensors with LED (light-emitting diode) indicators, which makes it easy to use.


The sensor has an Ingress Protection (IP) rating of IP67, so it's dust-tight and able to withstand submersion in water up to one metre deep for 30 minutes. The aluminium alloy housing is highly durable and corrosion-resistant for a long-lasting product. It also has reverse polarity protection, so it cuts off power to your electronic circuits in the event of faulty wiring.

Features and Benefits

• Detection range of 30 mm


• Through-beam (fork) detection type


• 4-wire electrical connection


• Cable length of 2 m


• Aluminium alloy housing material


• Ingress Protection (IP) rating of IP67


• Infrared light source


• Maximum current of 15 mA


• Maximum DC voltage of 30 V


• Maximum operating temperature of +55°C


• Minimum operating temperature of -15°C


• Panel mounting type


• LED (light-emitting diode) optical technology


• NPN (Negative Positive Negative) NO (Normally Open) output type


• Response time of less than 1 ms


• Fork sensor style


• Meets CE (Conformité Européenne) and IEC (International Electrotechnical Commission) standards


• Pre-wired terminal type

RS Pro Datasheet

Connection Diagram PNP & NPN

RS PRO Factory Automation Sensors Guide
