Recom Switching Power Supply, RACM40-15S, 15V dc, 2.666A, 40W, 1 Output, 90 → 264V ac Input Voltage, Источник питания

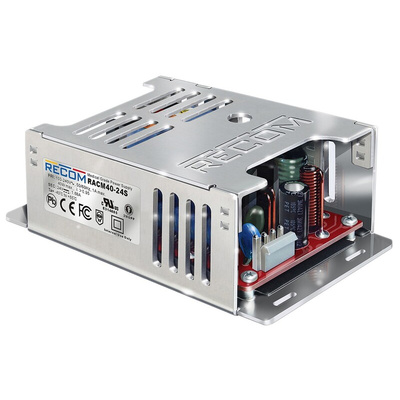

RECOM RACM40 40W Enclosed Case Style Single Output AC/DC Converters

The RECOM RACM40 is a compact 3.6”x2.38” high efficiency AC/DC power supply with 2xMOPP safety approval for medical applications. These space saving enclosed power supplies have an universal input voltage range (85-264VAC), 4kVAC isolation, require no minimum load and can be used at ambient temperatures of between -40°C and +85°C. The 12V, 15V, 24V or 48V output voltages are fully protected and have tolerances of less than ±0.2% over the entire input voltage range and less than ±0.5% over the entire load range. The RACM40 series is certified to medical safety standard IEC/ES/EN-60601-1 3rd Edition and feature BF rated outputs with less than 75μA leakage current. It has a built-in Class B EMI filter and comes with a long 5 year warranty.

2MOPP/250VAC
Suitable for built in Class II Applications
Certified to medical safety standard IEC/ES/EN-60601-1 3rd Edition
Wide Input Voltage Range (85-264VAC)
Low Leakage Current (<75μA)• 5000m Operation
-40°C to +85°C Operating Temperature

Approvals

Medical certified to IEC/ES/EN-60601-1 3rd Edition
EN-55011 Certified
EN-55022 Certified

Datasheet
