Recom Switching Power Supply, RACM65-15S, 15V dc, 4.33A, 0.15W, 1 Output, 85 → 264V ac Input Voltage, Источник питания

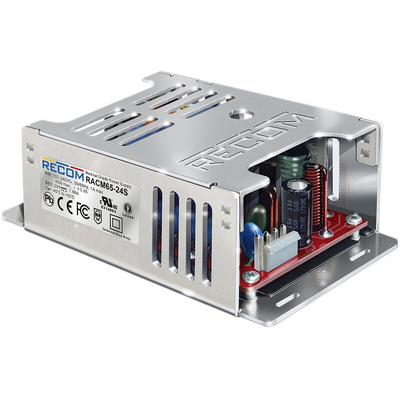

RECOM RACM65 65W Enclosed Case Style Single Output AC/DC Converters

The RACM65 is a compact 3.6x2.38 in. high efficiency AC/DC power supply with 2xMOPP safety approval for medical applications. These space saving enclosed power supplies have a universal input voltage range (85-264VAC), 4kVAC isolation, require no minimum load and can be used at ambient temperatures of between -40°C and +85°C. The 12V, 15V, 24V or 48V output voltages are fully protected and have tolerances of less than ±0.2% over the entire input voltage range and less than ±0.5% over the entire load range. The RACM65 series is certified to medical safety standard IEC/ES/EN-60601-1 3rd Edition and feature BF rated outputs with less than 75μA leakage current. It has a built-in Class B EMI filter and comes with a 5 year warranty.

2MOPP Safety approval for medical applications
Suitable for built in Class II applications
Wide Input Voltage Range (85-264VAC)
Low leakage current (<75μA)
5000m Operation
-40°C to +85°C Operating temperature
Connector set available

Approvals

Certified to medical safety standard IEC/ES/EN-60601-1 3rd Edition
2MOPP Safety approval for medical applications

Datasheet
