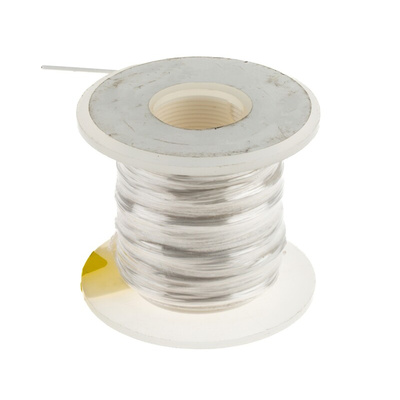

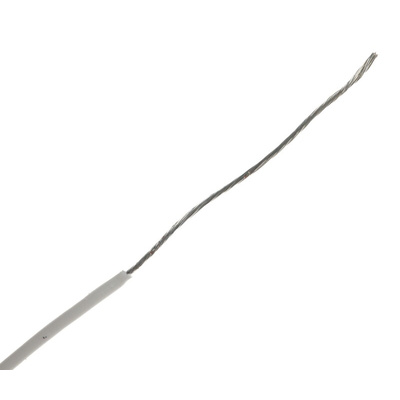

39X2205 WH005, Alpha Wire 39X2205 Series White 0.33 mm² Hook Up Wire, 22 AWG, 7/0.25 mm, 30.5m, Silicone Insulation

Belden Alpha Wire White Hook-Up Wire, 0.33mm² CSA, 30.5m Length - 39X2205 Series - 39X2205 WH005

Use this flexible hook-up wire from Belden's Alpha Wire range to transmit power and data to high-voltage devices. Its tinned-copper conductors have a low resistance of 15.1Ω/1000ft, which means electricity flows through them easily to give you a reliable connection. The conductors are also silver-plated, so they're resistant to corrosion, delivering reliable performance and a long service life. This cable has silicon insulation to protect you from electric shocks, and its 30.5m length means there's ample supply to cut and use for numerous jobs.

Features & Benefits

• Wide operating temperature range of -40°C to +200°C for use in extreme conditions
• Voltage rating of 5kV suitable for high-power applications
• Minimum bend radius of 10 times the cable diameter for flexible installation in confined spaces and around corners
• Colour-coded for easy identification in circuits

Applications

• Process and packaging industry
• Specialised machine tools
• High-temperature ovens

Is this cable flame-retardant?

Yes – this cable is self-extinguishing, which means it stops burning within a short time in the event of a fire.
