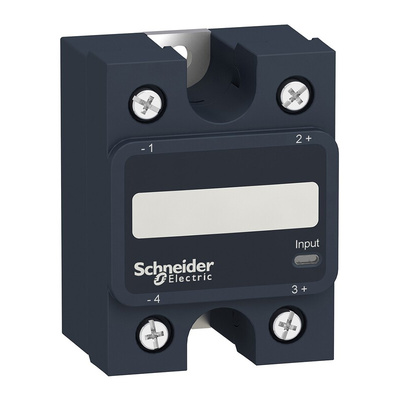

SSP1D425BDT, Schneider Electric Harmony Relay Series Solid State Relay, 25 A Load, Panel Mount, 150 V dc Load, 32 V dc Control, Реле

MOSFET Zelio SSP1 Thermal Pad Solid State Relays

The new Zelio MOSFET SSP1thermal pad relays offer a complete range of innovative, smart diagnostic features and reliable solid state relays. This range of solid state relays, with their telescopic screw terminal are safe and reliable plus the smart diagnostic feature which has a signal alarm output allowing you to troubleshoot, therefore minimizing any downtime and the impact of a machine break down. The Mosfet SSP1 solid state relays are a complete solution of 1 and 3 phase, slim, modular and DIN rail panel mount with a solid state switching solution. With simple easy product selection and easy to understand product information the SSP1 range provides you an enhanced product and a much improved user experience.

Benefits:
MOSFET technology
DC switching
Thermal pad
1 Phase
Simpler approach giving higher efficiency
Maintenance free
Full electronic unlimited lifespan
High switching frequency
Fast and precise control
Silent and reliable switching
No moving parts
Sustainable in harsh environments
Resistant to shock and vibration
Free from contact contaminations

Applications:
Suitable for a wide range of applications including:
Industrial machines
Packaging machines
Injection moulding
HVAC
Machines, building and medical equipment
Textile machines

Schneider Electric Solid State Relay, Shock-Resistant, 106A Surge Current - SSP1 Series - SSP1D425BDT

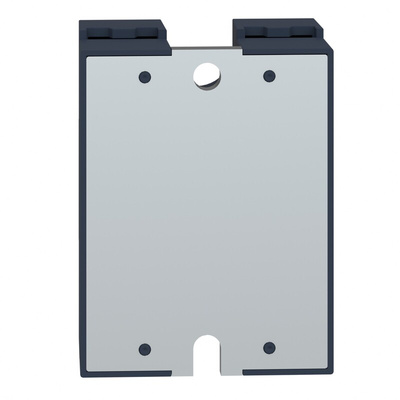

Kick start your electric circuit using this solid state relay from Schneider Electric. It converts an incoming electrical signal to an optical one, making or breaking the circuit. As it has no moving parts or physical contacts, wear and tear isn't an issue for this unit. For speedy troubleshooting, an integrated signal alarm is on hand to alert you to faults as soon as they crop up. This SSR features a thermal pad that takes the heat off it in demanding operations.

Features & Benefits

• Withstands surge current up to 106A for 10ms to prevent electric hazards
• Integrated LED indicator for quick status configuration
• Output current range between 1 and 150V DC means it's safe to use with both low-power and high-power loads
• Turn-on and turn-off time of 0.1ms for rapid power switching
• Built-in test button makes debugging a cinch

Applications

• Medical and pharmaceutical industry
• Lighting fixtures
• HVAC systems

How durable is this relay?

As this relay has a mean time to dangerous failure of 1875.9 years, there's minimal risk of it going wrong in the long term, so you and your system are in safe hands.
