APM Shunt Meter

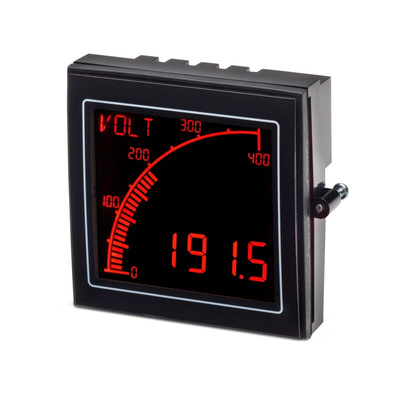

Trumeter APM meters are the most visible, easy to use, multi-format, programmable panel meters on the market.
The APM Shunt Meter is ideal for use in a range of applications where accurate DC current measurement is required. The programmable scale and custom annunciators mean that users can tailor the meter to display their critical parameters exactly how they want. The two outputs can be used to connect the shunt meter to other systems in the process, making this meter more than just a display.

Features and Benefits

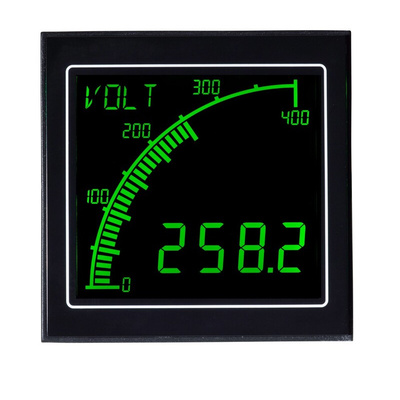

• Large 4-digit, 12 mm display

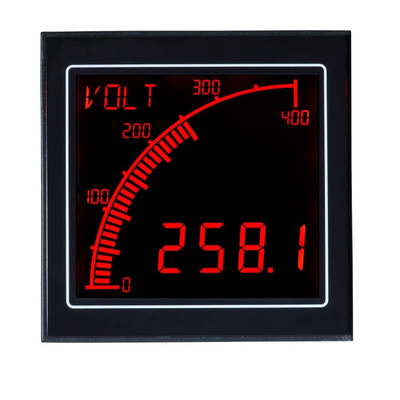

• Dynamic backlight colour

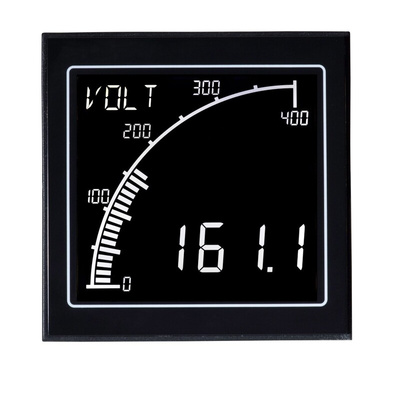

• User-adjustable backlight brightness and colour
• Wide viewing angle
• 40 segment bar graph display
• Separate Starburst display area for annunciators, custom messages and alarm information
• Custom annunciators
• 2 independent Alarm set-points

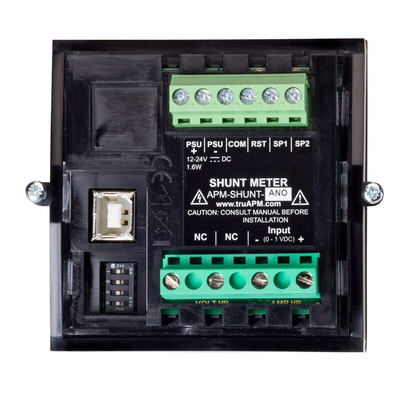

• 2 independent outputs
• Easy to use software by plugging into USB port on a PC
• 0-1 V dc input range
• 4-20 mA analogue monitor output
• IP65 (front panel) protection

Applications

• Marine
• Leisure
• Material Handling
• Power Supplies
• Load Banks
• Charging systems
