95009-7661, Molex 95009 Series Female RJ11 Connector, Through Hole, Разъем

Molex 95009 Series Cat 3 RJ Modular Jacks with Panel Stops

95009 series Cat 3 right angle (side entry) RJ11 and RJ45 PCB Modular jacks with black UL94V-0 high temperature thermoplastic housings and gold plated contacts. These 95009 series Cat 3 RJ11 and RJ45 PCB modular jacks have a termination interface pitch of 1.27mm, PCB location and retention features and panel stops for panel mounting purposes.
For mating connectors see FCC 68 plugs

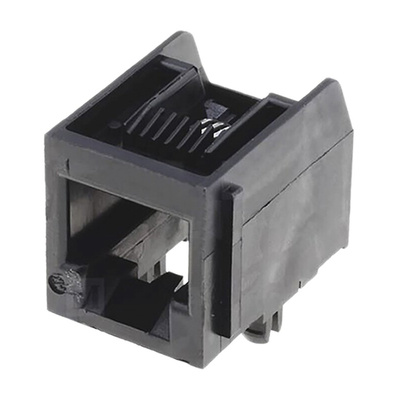

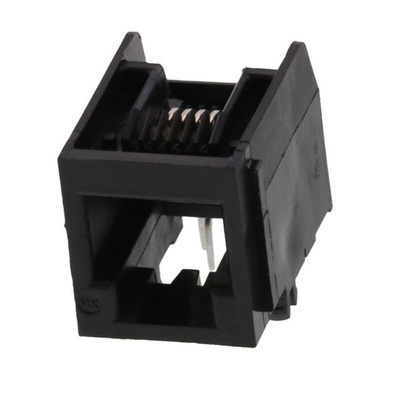

Molex RJ11 Connector, 16mm Height, Right-Angle Entry - 95009-7661

To get your data centre networking with automated equipment, use this RJ11 connector from Molex. It's an Ethernet jack that provides a secure connection and allows devices to stay in touch with each other. Thanks to strain relief integrated into its housing, there's little chance of attached cables being damaged by bending, twisting or snagging. The unit's thermoplastic body resists abrasion and wear, so you can count on its durability in harsh industrial settings.

Features & Benefits

• Flame-retardant housing reduces the risk of fire spreading
• Gold-plated contacts ensure optimal electrical flow
• Reusable, as you can safely mate it up to 2,500 times

Applications

• Robotics systems
• Automotive manufacturing
• Security equipment
• Data and telecommunication centres

How much space does this JR11 connector need on a PCB?

The jack needs minimal space, thanks to its 16mm width and low mating interface pitch of 1.02mm. This allows for tight circuit-board packing.

RJ11 6/6 right angle modular PCB jack

Specification Sheet - 95009-7661
