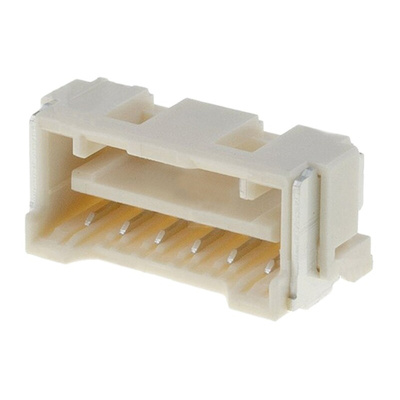

502494-0670, Molex CLIK-Mate Series Right Angle Surface Mount PCB Socket, 6-Contact, 1-Row, 2mm Pitch, Solder Termination

Molex 2.00 mm CLIK-Mate SMT PCB Receptacles

CLIK-Mate 2.00 mm SMT PCB receptacles with a robust design for use with CLIK-Mate 2.00 mm receptacle housings. These CLIK-Mate SMT receptacles have a dual inner positive locking mechanism that provides an audible click when a secure mating connection has been made. The housings of these CLIK-Mate receptacles have mating guides and keying to prevent mismating. A flat pick-and place area on the connector housing enables easy automatic placement on the PCB. Reinforced metal solder tabs offer a secure PCB retention and provide strain relief to the solder joint. These CLIK-Mate PCB receptacles feature a tuning fork terminal design that provides a secure electrical contact, a low insertion force and prevents stubbing.

Molex 2.00 mm CLIK-Mate SMT PCB Receptacles

• Robust design
• Dual inner positive locking mechanism for mating assurance
• Polarization features to prevent mismating
• Metal solder tabs for secure PCB retention
• Tuning fork terminal design for secure electrical contact
• Pick and place area for automatic placement on PCB

Applications

These CLIK-Mate 2.00 mm connectors are ideal for use in a wide range of applications in several industries. Applications include automotive head lamps and interior mirrors, industrial scanners, smart grid meters, LED light modules, medical patient monitors, surgical equipment and LCD & TV panels

Molex 2.00 mm CLIK-Mate Wire to Board Connector System

CLIK-Mate 2.00 mm wire to board connector system with a rugged design and a high current carrying capability of 3.0 A and 250 V. The 2.00mm CLIK-Mate connector system provides a secure electrical connection with a low insertion force. Dual inner positive locks produce an audible click when the connectors are mated providing reliable mating assurance. The 2.00mm CLIK-Mate connector system consists of SMT PCB receptacles, crimp housings and crimp contacts with a low insertion force tuning fork design. These CLIK-Mate connectors are ideal for use in applications that require a connector with robust features and a high pin count that occupies less space

CLIK-Mate 2mm R/A PCB receptacle, 6P

Line Drawing
