33472-1206, Molex, MX150 Automotive Connector Socket 12 Way, Crimp Termination

Molex MX150 3.50 mm Sealed Automotive Receptacle and Blade Connectors - 33472 and 33482 Series

MX150 high performance sealed automotive receptacle and blade connectors that meet USCAR-2 Class 3 requirements. Meeting this requirement means that these connectors can be used in on-engine, high vibration, under-hood and under chassis environments at class 3 temperatures. These MX150 automotive connectors have a compact housing design and are based on the 1.50 mm ISO blade type terminal system. This terminal system has a low insertion force and offers a high performance connection for mid power applications. The connector seals are designed and tested to IEC IP6K7 and IP67K9K and SAE USCAR-2 Rev 4 standards. Meeting this standard means that the connectors exceed waterproof demands as a true sealed connector system tested under submersed conditions in various fluids. The matte-seals of these connectors provide both waterproof protection and strain relief to the wire seal interface. The connector terminals which require purchasing separately are crimped and poked into the connector. These MX150 automotive connectors are supplied pre-assembled and consist of a housing, grommet cap, a primary lock reinforcement, a matte seal and a ring seal (female only). Versions of these connectors are also available with a CPA (Connector Position Assurance) which only locks when the connector is latched.

Features and Benefits

• Meet USCAR-2 Class 3 requirements.
• Waterproof to IEC IP6K7 and IP67K9K and SAE USCAR-2 Rev 4 standards
• Excellent electrical and mechanical performance
• Compact 3.50 mm pitch housing design
• High performance 1.50 mm ISO blade terminal system
• Easy poke-in terminal insertion
• Matte seal for waterproof protection and strain relief
• Polarization to prevent mismating
• Supplied pre-assembled to save time
• Available with CPA (Contact Position Assurance)

Product Application Information

These MX150 automotive connectors are ideal for SAE and ISO style wire and support both signal and power applications for both automotive and non-automotive applications. Applications include commercial vehicles, recreational vehicles, industrial vehicles and equipment, construction equipment and marine equipment

Note

Meets IPx9K when the following configuration is used: With CPA, With Backshell, With Convoluted Conduit

Standards

USCAR-20 (FCLT) / USCAR-2 Rev 4 / USCAR-21
IEC IP6K7and IP6K9K and SAE USCAR-2 Rev 4

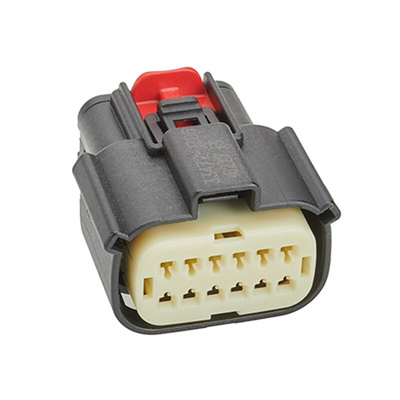

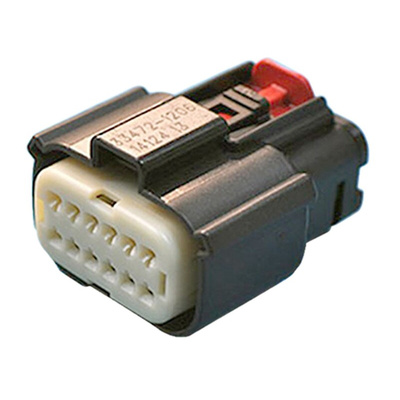

Molex MX150 Automotive Connector Socket, 2 Rows, 12 Contacts - 33472 Series - 33472-1206

This high-performance crimp receptacle housing from Molex is designed for securing wire-to-board and wire-to-wire electrical connections in cars and commercial vehicles. It's part of the MX150 sealed connection system and allows for convenient and effective joins that won't be disrupted by the rough vibrations common to road transport. This receptacle functions safely in temperatures ranging from -40°C to +125°C, so it's suitable for the most extreme conditions.

• Copper-alloy contacts with tin plating offer excellent conductivity for strong connections
• Dimensions of 32.75 (width) x 24.9 (height) x 37.65mm (depth) provide a compact design for convenient installation
• Matte seals protect against water infiltration for more secure joins
• Modified polystyrene-alloy housing material offers protection from debris and impacts

Applications

• Automotive manufacturing
• Road haulage
• Boating and marine operations

Does this connector prevent mismating?

Yes, the receptacle is polarised, so only properly mated connections can be inserted into it. This allows for fast and easy connections, as well as blind connections where you're unable to see the plug enter the socket.

Molex MX150™ Sealed Connection Systems

MX150 crimp receptacle housing, 12P
