Molex 47950 Series 2.4GHz / 5GHz Wifi Stand Alone Antenna

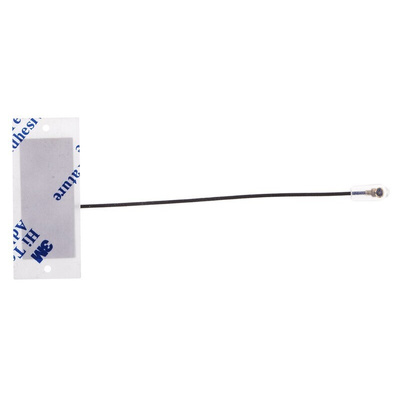

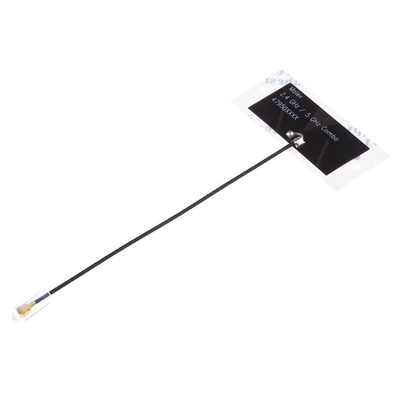

47950 series 2.4GHz / 5GHz Wifi stand alone antenna with a 100mm cable length and adhesive mounting. This 47950 series Wifi antenna has a 50 Ohm impedance, 2 bands and is terminated with a SMT male connector which mates with a 50 Ohm SMT MCRF jack receptacle (stock number 702-5425)

Molex WiFi Antenna, 2.4 to 5 GHz - 47950 Series - 47950-0011

Mount this WiFi antenna from Molex directly in the casing of your medical and electronic equipment to receive clean and clear WiFi signals. It's a standalone antenna with a slim design that makes it easy to fit inside even compact devices. The antenna features omnidirectional directivity for evenly distributed power radiation, enabling reliably effective signal reception. Thanks to a construction free of Halogen and other environmentally damaging substances, this is an eco-friendly choice.

• Connects to energy source with a 100mm micro-coaxial RF (radio frequency) cable for a strong and secure join
• Accommodates Bluetooth and WiFi radio frequency protocols for a versatile range of connections
• Dipole style centre-feed design enables balanced transmission

Applications

• Mobile gaming devices
• Telemedicine devices
• Automotive manufacturing

Does this antenna need screws for mounting?

No, this antenna instead uses a flexible, double-sided adhesive so you can simply peel-and-stick anywhere in your device's casing.

Is the antenna affected by interference from other devices?

This antenna uses a ground-plane independent design to help avoid interference from PCB (printed circuit board) ground-induced effects. This helps reduce engineering costs for a more efficient and effective result.
