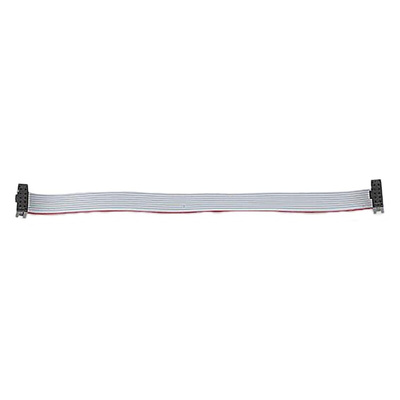

92321-1030, Molex QF-50 Series Flat Ribbon Cable, 10-Way, 2.54mm Pitch, 300mm Length, QF-50 IDC to QF-50 IDC

Molex 1.27mm QF-50 Single Beam IDC Ribbon Cable Connectors

1.27mm QF-50 IDC single beam vertical MIL/DIN version ribbon cable/wire trap female connectors with an upper housing pre-loaded with gold plated phosphor bronze IDC contacts. These QF-50 single beam ribbon cable/wire trap connectors are fully shrouded with a 90 degree cable entry angle and black UL94V-0 polyester housings which are fully polarized to ensure accurate mating. The mating pitch of these QF-50 single beam IDC ribbon cable connectors is 2.54mm, the termination interface is 1.27mm and accepts ribbon cable with a 26-28 AWG wire size.
Part numbers 92321-1xxx are QF-50 to QF-50 cable assemblies terminated by two female QF-50 connectors with a 28 AWG, 1.27mm pitch and a 7 strand ribbon cable. These QF-50 to QF-50 cable assemblies are available with a variety of connector sizes and ribbon cable lengths.

Molex Ribbon Cable, 28AWG, Stranded Conductor Type - QF-50 series - 92321-1030

Do you need to hook up hardware in an industrial setting? This ribbon cable from Molex will help you join A to B. It's a handy choice if the job calls for squeezing a lot of wires into a small space, as it has 10 ways to support multiple simultaneous connections. A PVC outer jacket ensures the conductors are safely protected from chemicals and abrasion, so you can use the cable in hazardous automation environments.

Features & Benefits

• 300mm length gives you plenty of room to manoeuvre
• Flat cable shape provides a high level of flexibility
• Standard 1.27mm pitch for precise compatibility
• Grey sheath to blend in with surrounding electronic hardware

Applications

• Computer equipment
• Automotive manufacturing
• Aviation industry

What gender connectors does this ribbon cable have?

It has a female connector on each end, so it's ideal for joining two circuits via their male connectors.

1.27mm Molex QF-50 Single Beam Ribbon Cable Connectors

QF-50 - QF-50 ribbon cable assembly,0.3m
