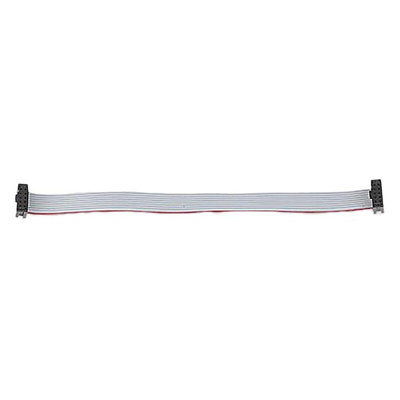

92321-1040, Molex 92321 Series Flat Ribbon Cable, 10-Way, 400mm Length, QF-50 IDC to QF-50 IDC

Molex 1.27mm QF-50 Single Beam IDC Ribbon Cable Connectors

1.27mm QF-50 IDC single beam vertical MIL/DIN version ribbon cable/wire trap female connectors with an upper housing pre-loaded with gold plated phosphor bronze IDC contacts. These QF-50 single beam ribbon cable/wire trap connectors are fully shrouded with a 90 degree cable entry angle and black UL94V-0 polyester housings which are fully polarized to ensure accurate mating. The mating pitch of these QF-50 single beam IDC ribbon cable connectors is 2.54mm, the termination interface is 1.27mm and accepts ribbon cable with a 26-28 AWG wire size.
Part numbers 92321-1xxx are QF-50 to QF-50 cable assemblies terminated by two female QF-50 connectors with a 28 AWG, 1.27mm pitch and a 7 strand ribbon cable. These QF-50 to QF-50 cable assemblies are available with a variety of connector sizes and ribbon cable lengths.

1.27mm Molex QF-50 Single Beam Ribbon Cable Connectors

QF-50 - QF-50 ribbon cable assembly,0.4m
