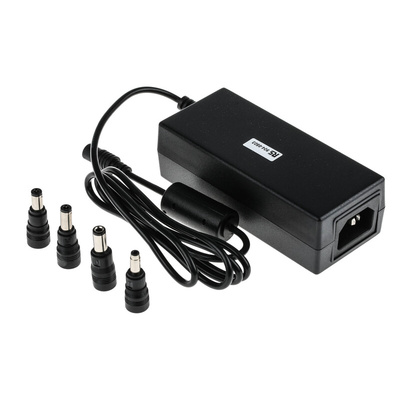

RS PRO 72W Plug-In AC/DC Adapter 24V dc Output, 3A Output, Блок питания

RS Pro EA1068 Series Desktop Power Supply

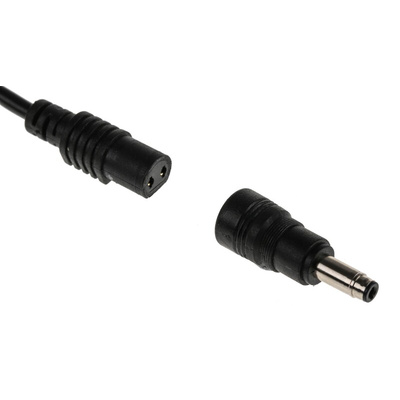

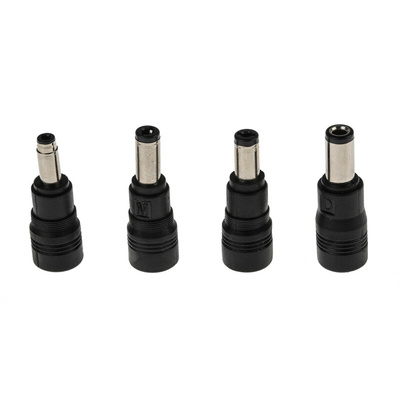

This unit is equipped with a single output connector which allows you to select between four different sized coaxial plugs. The sizes supplied are widely used, industry standard 1.75mm, 2.1mm, 2.5mm and 3mm coaxial plugs making these units suitable for many potential applications.

Our RS Pro line of desktop power supplies provides a reliable & robust power supply solution. They come equipped with over voltage, over current & short circuit protection.

Energy Efficiency Level VI Compliance

A major benefit to the design of these units is they comply with the new Energy Efficiency Level VI Compliance standards. These standards ensure a greater efficiency over Level V units, using less power more efficiently results in lower energy bills and a lower impact on the environment.

Features & Benefits

• Energy saving compact design
• Energy Efficiency Level VI compliant
• Regulated output
• EMC compliance to EN 55022 Class B
• Short circuit, overload and overvoltage protection - auto recovery

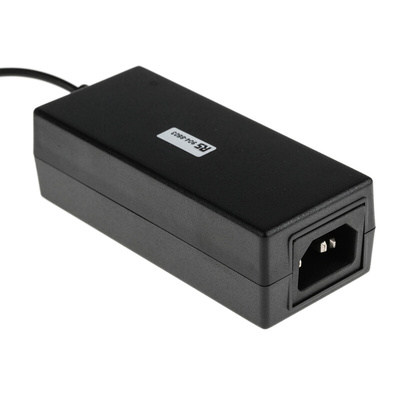

• Standard IEC320 C14 input socket
• LED status indication

What devices can I power?

• Consumer electronics

Safety Standards & Approvals

• Fcc part15 class B rules
• EN55022
• AS/NZS CISPR22

Approvals

• UL/CUL TUV, CB, FCC, CCC, CE, GS, PSE, BSMI, CU, RCM, UL-AR S Mark

Note

The power supply is supplied without a power lead, please see essential accessory for a selection of compatible leads.

Note

The power supply is supplied without a power lead, please see essential accessory for a selection of compatible leads.
