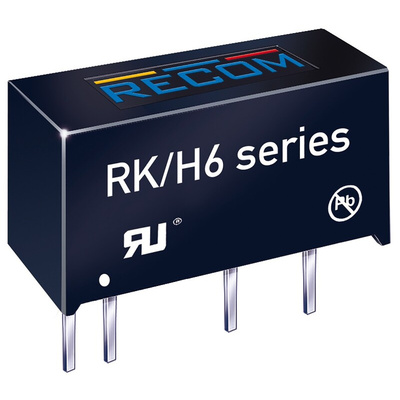

RK-0505S/H6, Recom RK DC-DC Converter, 5V dc/ 200mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +90°C Max Temp -40°C Min, Преобразователь

RECOM DC-DC Converter, 0.15 Load Regulation, SIP-7 Package - RK Series - RK-0505S/H6

Smooth out fluctuating currents with this DC-DC converter from RECOM. It converts a 4.5 to 5.5V source to the stable 5V output needed by sensitive equipment. Due to a broad operating temperature range between -40°C and +90°C, you can rest assured the component is suitable for use in tough industrial conditions. It has continuous short-circuit protection to boost efficiency and minimise downtime. Thanks to a mean time between failures of up to 400,000 hours, this is a device that you can count on for the long term.

Features & Benefits

• Efficiency up to 77% for minimal waste and energy efficiency
• Compact dimension of 19.65 (L) x 7.05 (W) x 10.2mm (H) for a comfortable fit in busy setups
• 4kV DC isolation voltage provides protection against shocks

Applications

• Consumer electronics
• Industrial equipment
• Renewable energy systems

What's an isolated DC-DC converter?

Isolated converters, like this one, feature input and output circuits that are separated from each other, so there's no direct electrical connection between them. This helps prevent disruption caused by electrical noise.

How do I mount this converter?

The unit's compatible with through-hole mounting, so installation's quick and easy.
