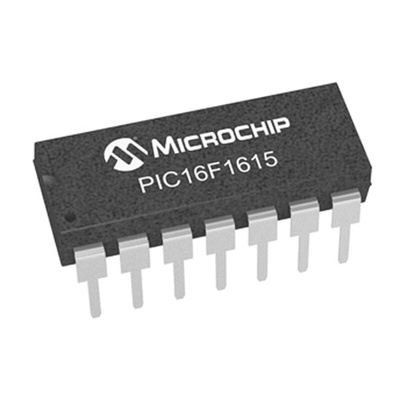

Microchip PIC16F1615-I/P, 8bit PIC Microcontroller, PIC16F, 32MHz, 14 kB Flash, 14-Pin PDIP, Микроконтроллер

PIC16F1615/1619 8-Bit Flash Microcontrollers

The PIC16F range of Microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options.

PIC16F1615/1619 Microcontrollers are based on Microchip’s Enhanced Mid-Range core and integrate a variety of peripherals that make these devices suitable for a wide variety of general purpose and small motor control applications.

Microcontroller Features

32 MHz Max. CPU Speed
49 Instructions
16 Level Hardware Stack
Internal Oscillator
12 or 18 I/O Pins
Power-On Reset (POR)
Power-Up Timer (PWRT)
Brown-Out Reset (BOR)
Windowed Watchdog Timer (WWDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)
Low-Voltage Programming (LVP)

Peripheral Features

10-bit Analogue to Digital Converter (ADC) – PIC16F1615 8 Channels; PIC16F1619 12 Channel
8-Bit Digital-to-Analogue Converter (DAC)
Voltage Reference
Zero-Cross Detect (ZCD)
Two Capture/Compare/PWM (CCP) Modules
Two Comparators
Two 24-bit Signal Measurement Timers (SMT)
Angular Timer
Cyclic Redundancy Check with Memory Scan (CRC/SCAN)
Math Accelerator with Proportional-Integral-Derivative (PID)
Zero Cross Detector
Voltage Reference Module
Four 8-bit Timers with Hardware Limit Timer (HLT)
Three 16-bit Timers
Peripheral Pin Select (PPS)
Complimentary Waveform Generator (CWG)
Two Configurable Logic Cell (CLC)
Enhanced USART (EUSART)
SPI/I2C Serial Communications
