2102866-1, TE Connectivity MT Ferrule Kit for use with VITA 66.1 and 66.4

TE Connectivity Fibre Optic MT VITA 66 Backplane Receptacle and Modular Plug Kits

Fibre Optic MT VITA 66 fibre optic backplane receptacle kit (stock number 905-3343) and mating Fibre Optic MT VITA 66 fibre optic modular plug kit (stock number 905-3347) for providing a high-density, blind-mate optical interconnect in a backplane/card configuration. The fiber-optic (ribbon) cable interconnects are fed through the backplane to removable systems modules using standard-grade Multi-Mode MT ferrules. The fibre optic MT VITA 66 backplane receptacle kit has guide pins for blind mating and the mating VITA 66.1 modular plug (daughtecard) connector has a slot feature in the housing that facilitates cleaning the MT ferrule interfaces. Both of these Fibre Optic MT VITA 66 connector kits will interconnect up to two MT ferrules, each accommodating up to twelve fiber paths.
The Fibre Optic MT VITA 66 fibre optic backplane receptacle kit consists of a shell, insert housing, alignment posts, retainer plate with captive screws and 2-56 screws.
The Fibre Optic MT VITA 66 fibre optic modular plug kit consists of a housing and retainer plate with captive screws and 2-56 screws.
MT Multimode ferrule kits are available separately.

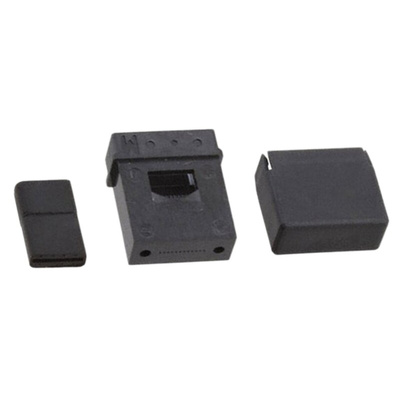

Stock number 905-3356 is an MT multimode receptacle backplane ferrule kit consisting of an MT ferrule. mini-boot and ferrule cover
Stock number 905-3359 is an MT multimode modular plug ferrule kit consisting of an MT ferrule, mini-boot, pin-holder, spring and ferrule cover.

Fibre optic MT ferrule Plug & Receptacle Kits
