Lovato EXM Expansion Modules

The EXM Expansion Modules for Lovato infrarer expandable products are designed and developed to enhance the functions of connectivity, I/O, memory and analysis of the intstrument to which it is connected.

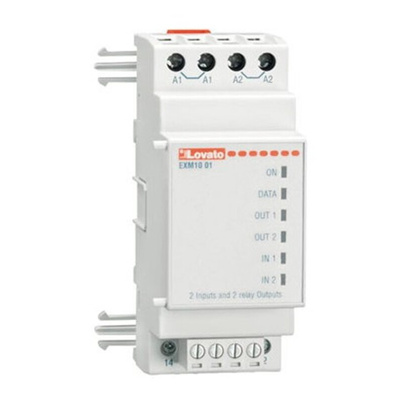

EXM1001

DIN Rail housing, 2U (36mm wide)
Double infrared connection port
2 isolated digital input
2 relay output
External DC supply protected from short-circuit and over current
6 indication LEDs
Automatic recognition by the instrument to which it is connected
IN and OUT parameter configuration from the instrument menu

EXM1012

DIN Rail housing, 2U (36mm wide)
Double infrared connection port
RS485 serial interface with bit rate up to 38400Bps
Up to 32 nodes with 0-255 ID address programmable
2 indication LEDs
Automatic recognition by the instrument to which it is connected
EXM configuration from the proper instrument menu

EXM1013

DIN Rail housing, 2U (36mm wide)
Double infrared connection port
Isolated ethernet communication interface
10/100Mbps ethernet communication interface
TCP/IP protocol
2 indication LEDs on front
2 dual-colour LEDs on the RJ45 connector for ethernet status

EXM1030

DIN Rail housing, 2U (36mm wide)
Double infrared connection port
Automatic recognition by the instrument to which it is connected
8MB flash memory
Real time clock with maintenance-free energy back-up
