RS PRO Solid State Interface Relay, DIN Rail Mount, Оптопара

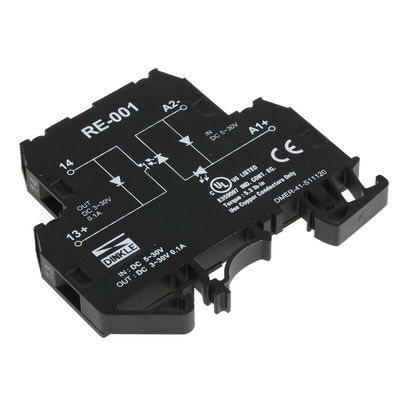

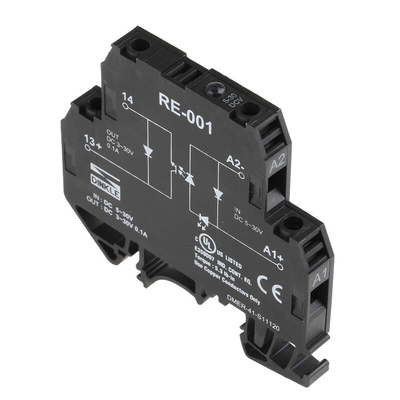

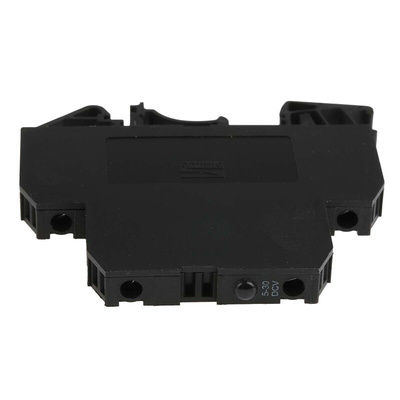

RS PRO Optocoupler, Max. Input 6 mA, 60.8 mm Length, DIN Rail Mounting Style

The highly evolved RS PRO Optocoupler links a signal from one electrical circuit to another. By using just light to provide isolation between an input source and an output load, it offers excellent levels of optic coupling isolation. This prevents electrical interference and results in a fast-switching frequency for your precise requirements.

This component features a slim design that's resistant to dust and humidity. It has a rated input voltage of 5 V to 30 V and a maximum switching frequency of 10 kHz. It's suited to an electric wire size of 2.5 mm². The unit boasts a low defect rate and is designed for DIN (Deutsches Institut für Normung, or the German Institute for Standardisation) rail mounting.

The RS PRO Optocoupler can be used in a wide range of applications such as communications equipment, process automation and machine controls.

Features and Benefits

• DIN rail mount Optocoupler
• LED input
• Maximum input current of 6 mA
• Highly precise with 10 times faster switching capacity
• Slim design
• Resistant to dust and humidity
• Operating temperature range of -25°C to +60°C
• Dimensions of 60.8 mm x 67.5 mm x 6.1 mm
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Dimensional Drawing

RS PRO Datasheet
