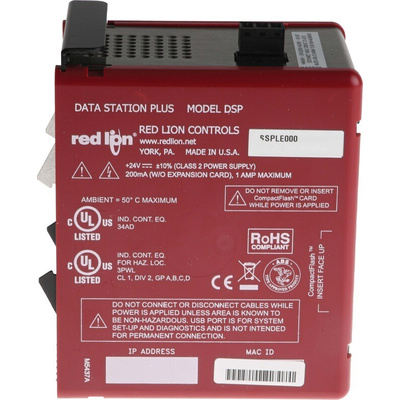

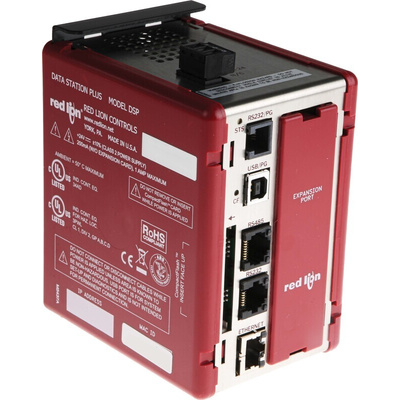

DSPLE000, Red Lion, 5 Channel(s)

Red Lion Data Station Plus- Protocol Converter

The Red Lion data station plus-protocol converter acts as a nexus for industrial data collection and management. The Ethernet port supports up to ten protocols simultaneously, using Crimson 3.0, to convert Ethernet to Ethernet protocols as well. The compact flash card allows data to collect and store the data to review later. The files are stored in simple CSV file format allowing common applications, such as Microsoft Excel and Access, to view and manage the data. The free Web sync utility provides a means to synchronize the files with a PC’s hard drive for permanent storage. The built-in web server allows log files to be retrieved manually, and provides access to the unique “virtual HMI”. Any standard web browser such as Internet Explorer or Netscape can be used to monitor or control the HMI from a PC, anywhere in the world.
DSPGT000 - stock no. 905-5532
- Multiple protocol converter
- Data logger
- The web server with Virtual HMI up to VGA (640 x 480) size and
- Expansion slot with increased SDRAM

Features and Benefits

CompactFlash slot allows process data to be logged directly to CSV files
Virtual HMI offers built-in pc-based SCADA functionality
web server provides worldwide access to data logs and virtual HMI
Extensive built-in driver list allows easy data mapping to PLCs, PCs, and SCADA systems
10 Base-T/100 Base-TX Ethernet connection can connect to an unlimited number Of devices via four protocols simultaneously
Alarm notifications can be sent via email or text messages

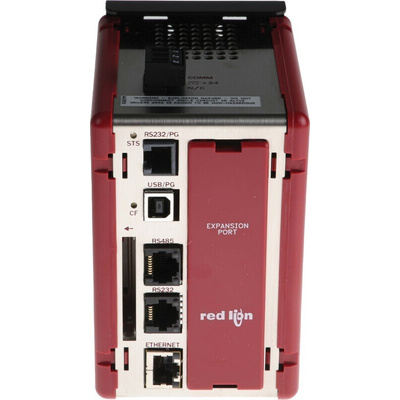

Independent serial ports provide virtually unlimited integration methods
Independent serial ports provide unlimited integration methods
24VDC supply voltage

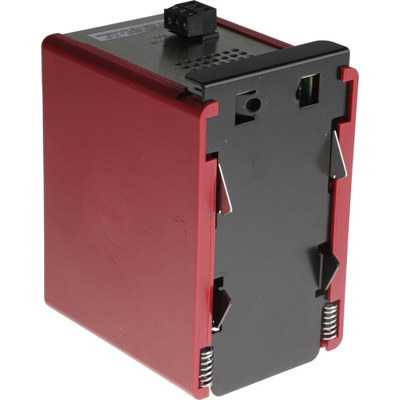

DIN Rail mounting
Number of I/O port is 5

Applications

Data mapping to PLCs
Data logging
Remote machine access

Certifications

cULus approved
CE
