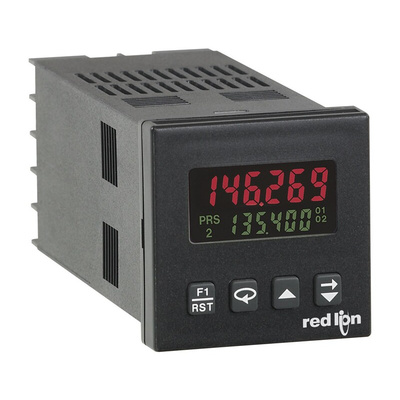

C48CS103, Red Lion C48C Counter Counter, 6 Digit, 50/60Hz, 85 → 250 V ac, Счетчик

Single Preset Counter- C48C Series

The C48C series of Counters is available with single preset and features a 7 segment, 2 line by 6-digit display. The counters offer a choice of nine programmable counting modes for use in applications requiring bi-directional, anti-coincidence and quadrature counting. They can also be programmed to register counts on both edges of the input signal, providing frequency doubling capability.

• 7 segment, 2 line 6-digit LCD display
• Programmable user inputs and front panel function key
• Quadrature sensing (up to 4 times resolution)
• Bi-directional counting, up/down control
• Status indicators for outputs
• Parameter security via programmable operator access privileges and protected value menu
• Horizontal or vertical stacking of multiples units
• 85-250 V ac power supply
• RS485 serial communications option
• Choice of numeric data entry modes
• NEMA 4X/IP65 sealed bezel

Red Lion Digital Counter

The Red Lion C48C series 6-digit LCD display, 1/16DIN mounting single preset counter’s voltage rating ranges between 85VAC and 250VAC. This counter offers a choice of nine programmable counting modes for use in applications requiring bi-directional, anti-coincidence and quadrature counting. It can also be programmed to register counts on both edges of the input signal, providing frequency doubling capability.

Features and Benefits

•
Maximum count frequency is 60Hz
• Status indicators for output
• Parameter security via programmable operator access privileges and protected value menu
• Horizontal or vertical stacking of multiples units
• RS485 serial communications option
• Measurement ranges between 0.00001h and 9.99999h
• Choice of numeric data entry modes
• NPN OC/Relay Output
• Plug-in screw terminals
• Operating temperature ranges between 0°C and 50°C

Applications

•
Industrial counting applications
• Control and monitoring systems
• Manufacturing assembly lines

Certifications

•
UL Recognized Component, File #E137808
• EN 50081-2
