G12C1100, Red Lion GRAPHITE Series Touch Screen HMI - 12 in, TFT Display, 1280 x 800pixels, Дисплей

Red Lion Touch-Screen HMI Displays

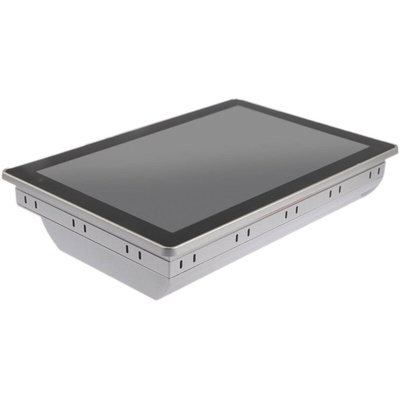

The Red Lion graphite advanced operator panel has 12inch TFT HMI LCD touchscreen display to combine a wide range of versatile plug-in modules with protocol conversion, data logging and web-based monitoring and control. With all cast-aluminium construction and UL Class 1, Division 2, ABS, ATEX and IECEx zone 2/22 approvals, graphite HMIs support wide operating temperatures and high shock/vibration tolerances to enable you to connect, monitor and control processes regardless of environment.

Features and Benefits

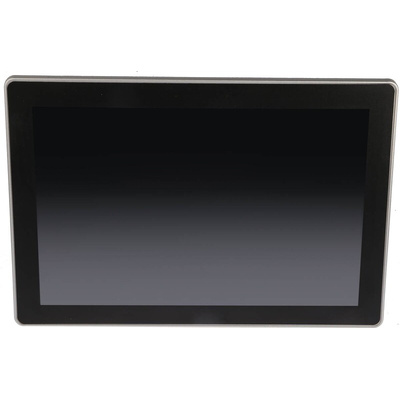

WXGA colour standard touchscreen (1280 x 800)
Indoor Model
Up to 20 simultaneous protocol conversions

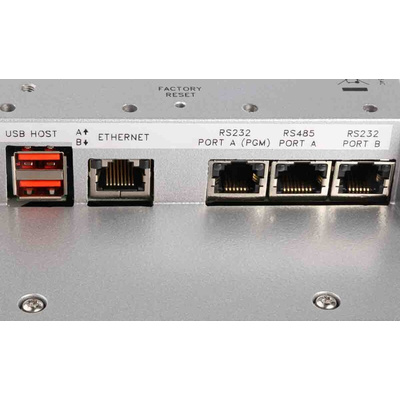

One 10/100 base-TX Ethernet port

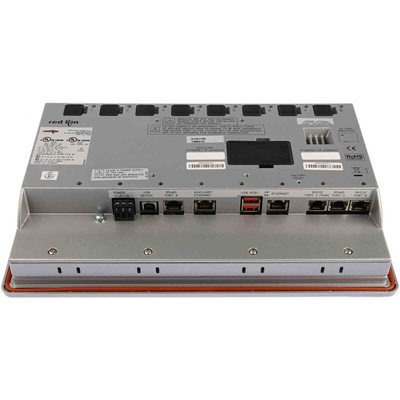

Four fully isolated serial communication ports, (two RS-232 and one RS-422/485)

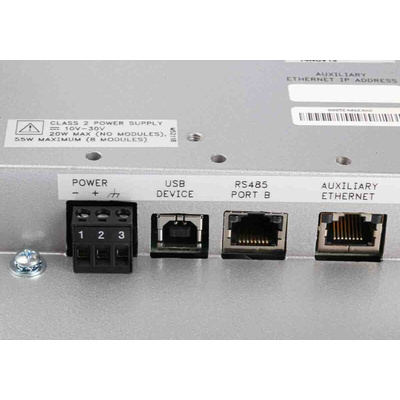

One USB type B port
Two High-retention USB host ports

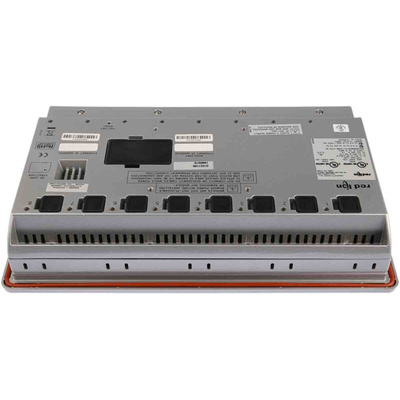

8 Module slots to easily add I/O capability with plug-in modules
307mm x 208mm dimensions
OPC UA client driver
OPC UA historical access
Crimson 3.0 software for easy drag-and-drop programming
Send an email and/or SMS notifications on alarm conditions
USB synchronization of database and log files
Real-time data logging provides historic visibility to support process improvements
Provides a built-in data logging (SD card), web server and FTP for remote access

Applications

Built-in MQTT connectors accelerate IIoT projects with point-and-click simplicity
Store and forward buffering for cloud connectors

Certifications

IP65 rated

HMI Operator Interfaces - Data Sheet
