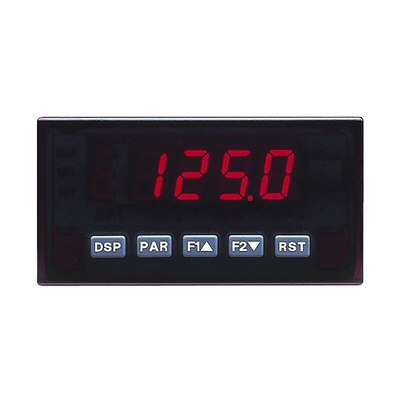

Red Lion PAXH0000 , LED Digital Panel Multi-Function Meter, 45mm x 92mm, Многофункциональный измеритель

Red Lion Analogue Input Panel Meter

The Red Lion analogue input panel meter is an indicator that offers several features and performance capabilities to suit a wide range of industrial applications. It measures the DC/voltage, strain, temperature. The optional plug-in output cards allow the configuration of the meter for present applications while providing easy upgrades for the future. The intensity of the display can be adjusted from dark room applications up to sunlight readable, making it ideal for viewing in bright light applications.
The meter provides a MAX and MIN reading memory with a programmable capture time. Its capture time is used to prevent detection of false MAX or MIN readings that may occur during start-up or unusual process events.

Features and Benefits

5-digit 0.56in red sunlight readable display
Variable intensity display
16-point scaling for non-linear processes
Programmable function keys/user inputs
9-digit totalizer (integrator) with batching
Optional custom units overlay w/backlight
4 set point alarm outputs (w/option card)
Communication and bus capabilities (w/option card)
Retransmitted analogue output (w/option card)
PC software available for meter configuration
Cut-out height of 96.5mm and width of 49.5mm
The sturdy plastic housing is also designed for tough industrial use
Operating temperature ranges between -10°C and 50°C

Certifications

NEMA 4X/
IP65 rated sealed front bezel
CE certified
cULus approved
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
