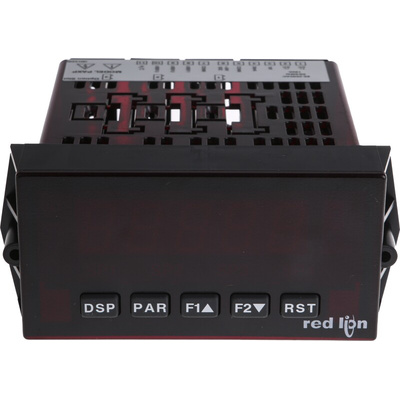

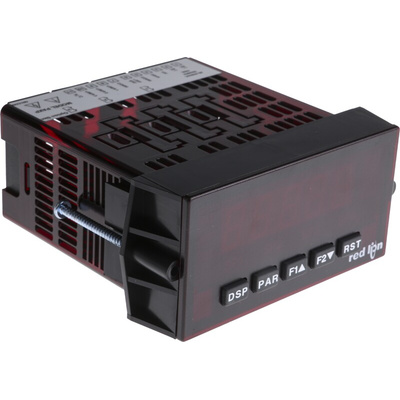

PAXP0000, Red Lion PAX LED Digital Panel Multi-Function Meter, 45mm x 92mm, Многофункциональный измеритель

Red Lion Analogue Input Panel Meter

The Red Lion analogue input panel meter is an indicator that offers several features and performance capabilities to suit a wide range of industrial applications. It measures various analogue inputs. The optional plug-in output cards allow the configuration of the meter for present applications while providing easy upgrades for the future. The intensity of the display can be adjusted from dark room applications up to sunlight readable, making it ideal for viewing in bright light applications.
The meter provides a MAX and MIN reading memory with a programmable capture time. Its capture time is used to prevent detection of false MAX or MIN readings that may occur during start-up or unusual process events.

Features and Benefits

Supply voltage rating is 85VAC to 250VAC
5-digit, 0.56in, red, sunlight readable display
The measurement ranges from -2mA to 26mA and -1VDC to 13VDC
Variable intensity display
16-point scaling for non-linear processes
Programmable function keys/user inputs
9-digit totalizer (integrator) with batching
Optional custom units overlay w/backlight
Four set point alarm outputs (w/option card)
Communication and bus capabilities (w/option card)
Retransmitted analogue output (w/option card)
Crimson® programming software
Cut-out width of 92mm, depth of 104.1mm and height of 45mm
Operating temperature ranges between -10°C and 50°C

Certifications

NEMA 4X
IP65 rated sealed front bezel
CE certified
cULus recognized
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
